Bobcat S185 specifications

Skid-steer loader · Historical S185 archive variants

Documented market

North America (English manufacturer page); country-specific and serial applicability not established.

Model years

Not established

Serial range

Not established

Evidence

Page heading and region selector · S185 Skid-Steer Loader (Non-Current Model); North America (EN) · Page

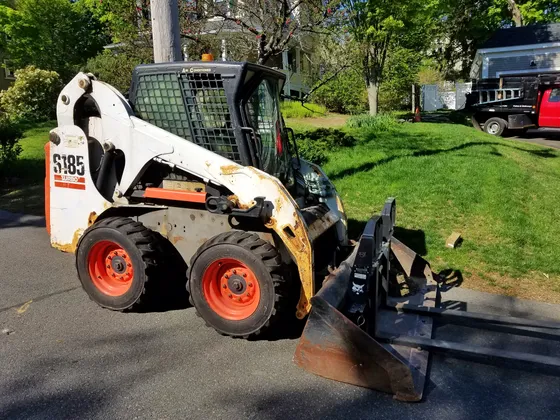

Bobcat S185 Turbo wheeled skid-steer loader with a grading attachment; the S185 badge is visible. — Photo: Daderot / Wikimedia Commons · CC0 1.0Equipment shown may have different options or attachments.

Key facts

Operating weightUnresolved

Applicability unresolved. Published variants or rating rows differ; select the relevant source column and configuration. No single value is selected.

2,821 kgPublishedOperating Weight
2,635 kgPublishedOperating Weight

Details and evidence

Machine width

1,676 mmPublished

Column 1: S185 (2008); Column 2: S185 (2008); Column 3: S185 T2; Column 4: S185 (2003); Column 5: S185 Turbo. Overall machine width; bucket width is a separate source row.

Details and evidence

Engine powerUnresolved

Applicability unresolved. Published variants or rating rows differ; select the relevant source column and configuration. No single value is selected.

45.5 kWPublishedHorsepower
44 kWPublishedHorsepower
41.8 kWPublishedHorsepower

Details and evidence

Rated operating capacityUnresolved

Applicability unresolved. Published variants or rating rows differ; select the relevant source column and configuration. No single value is selected.

839 kgPublishedRated Operating Capacity
840 kgPublishedRated Operating Capacity

Details and evidence

Tipping loadUnresolved

Applicability unresolved. Published variants or rating rows differ; select the relevant source column and configuration. No single value is selected.

1,849 kgPublishedTipping Load
1,769 kgPublishedTipping Load

Details and evidence

Standard hydraulic flowUnresolved

Applicability unresolved. Not stated in the inspected views: Auxiliary Std Flow — Column 5: S185 Turbo.

64 L/minPublishedAuxiliary Std Flow

Details and evidence

Detailed specifications

Each row keeps its manufacturer label and configuration. Separate rows do not define one combined machine configuration.

Applicability unresolved · Published variants or rating rows differ; select the relevant source column and configuration. No single value is selected.

Operating weight
Observation and evidence	Value
Operating Weight Column 1: S185 (2008); Column 2: S185 (2008); Column 3: S185 T2. Included equipment is not specified in this row. Published: 6220 lbs / 2821 kg Performance · Operating Weight · US and Metric; Column 1: S185 (2008); Column 2: S185 (2008); Column 3: S185 T2	2,821 kgPublished
Operating Weight Column 4: S185 (2003); Column 5: S185 Turbo. Included equipment is not specified in this row. Published: 5808 lbs / 2635 kg Performance · Operating Weight · US and Metric; Column 4: S185 (2003); Column 5: S185 Turbo	2,635 kgPublished

Source-supported

Machine width
Observation and evidence	Value
Overall Width Column 1: S185 (2008); Column 2: S185 (2008); Column 3: S185 T2; Column 4: S185 (2003); Column 5: S185 Turbo. Overall machine width; bucket width is a separate source row. Published: 66 in / 1676 mm Dimensions · Overall Width · US and Metric; Column 1: S185 (2008); Column 2: S185 (2008); Column 3: S185 T2; Column 4: S185 (2003); Column 5: S185 Turbo	1,676 mmPublished

Source-supported

Height
Observation and evidence	Value
Overall Height Column 1: S185 (2008); Column 2: S185 (2008); Column 3: S185 T2; Column 4: S185 (2003); Column 5: S185 Turbo. Overall height; not raised-arm height. Published: 76.3 in / 1938 mm Dimensions · Overall Height · US and Metric; Column 1: S185 (2008); Column 2: S185 (2008); Column 3: S185 T2; Column 4: S185 (2003); Column 5: S185 Turbo	1,938 mmPublished

Applicability unresolved · Published variants or rating rows differ; select the relevant source column and configuration. No single value is selected.

Length with bucket
Observation and evidence	Value
Length with Standard Bucket Column 1: S185 (2008); Column 4: S185 (2003); Column 5: S185 Turbo. With standard bucket. Published: 130.3 in / 3309 mm Dimensions · Length with Standard Bucket · US and Metric; Column 1: S185 (2008); Column 4: S185 (2003); Column 5: S185 Turbo	3,309 mmPublished
Length with Standard Bucket Column 2: S185 (2008); Column 3: S185 T2. With standard bucket. Published: 130.3 in / 3310 mm Dimensions · Length with Standard Bucket · US and Metric; Column 2: S185 (2008); Column 3: S185 T2	3,310 mmPublished

Applicability unresolved · Published variants or rating rows differ; select the relevant source column and configuration. No single value is selected.

Length without bucket / attachment
Observation and evidence	Value
Length without Attachment Column 1: S185 (2008). Without attachment. Published: 101.9 in / 2588 mm Dimensions · Length without Attachment · US and Metric; Column 1: S185 (2008)	2,588 mmPublished
Length without Attachment Column 2: S185 (2008); Column 3: S185 T2; Column 4: S185 (2003); Column 5: S185 Turbo. Without attachment. Published: 101.8 in / 2586 mm Dimensions · Length without Attachment · US and Metric; Column 2: S185 (2008); Column 3: S185 T2; Column 4: S185 (2003); Column 5: S185 Turbo	2,586 mmPublished

Applicability unresolved · Published variants or rating rows differ; select the relevant source column and configuration. No single value is selected.

Engine power
Observation and evidence	Value
Horsepower Column 1: S185 (2008); Column 2: S185 (2008). Gross/net basis and horsepower definition are not stated; published values are retained. Published: 61 hp / 45.5 kw S185 Key Specifications · Horsepower · US and Metric; Column 1: S185 (2008); Column 2: S185 (2008)	45.5 kWPublished
Horsepower Column 3: S185 T2. Gross/net basis and horsepower definition are not stated; published values are retained. Published: 59 hp / 44 kw S185 Key Specifications · Horsepower · US and Metric; Column 3: S185 T2	44 kWPublished
Horsepower Column 4: S185 (2003); Column 5: S185 Turbo. Gross/net basis and horsepower definition are not stated; published values are retained. Published: 56 hp / 41.8 kw S185 Key Specifications · Horsepower · US and Metric; Column 4: S185 (2003); Column 5: S185 Turbo	41.8 kWPublished

Applicability unresolved · Published variants or rating rows differ; select the relevant source column and configuration. No single value is selected.

Rated operating capacity
Observation and evidence	Value
Rated Operating Capacity Column 1: S185 (2008); Column 2: S185 (2008); Column 3: S185 T2; Column 4: S185 (2003). Rating percentage and the relationship between generic, undercarriage and counterweight rows are not established by this table. Published: 1850 lbs / 839 kg Performance · Rated Operating Capacity · US and Metric; Column 1: S185 (2008); Column 2: S185 (2008); Column 3: S185 T2; Column 4: S185 (2003)	839 kgPublished
Rated Operating Capacity Column 5: S185 Turbo. Rating percentage and the relationship between generic, undercarriage and counterweight rows are not established by this table. Published: 1850 lbs / 840 kg Performance · Rated Operating Capacity · US and Metric; Column 5: S185 Turbo	840 kgPublished

Applicability unresolved · Published variants or rating rows differ; select the relevant source column and configuration. No single value is selected.

Tipping load
Observation and evidence	Value
Tipping Load Column 1: S185 (2008); Column 2: S185 (2008); Column 3: S185 T2. Undercarriage applies only where named in the row; generic and undercarriage rows are not assumed interchangeable. Published: 4076 lbs / 1849 kg Performance · Tipping Load · US and Metric; Column 1: S185 (2008); Column 2: S185 (2008); Column 3: S185 T2	1,849 kgPublished
Tipping Load Column 4: S185 (2003); Column 5: S185 Turbo. Undercarriage applies only where named in the row; generic and undercarriage rows are not assumed interchangeable. Published: 3900 lbs / 1769 kg Performance · Tipping Load · US and Metric; Column 4: S185 (2003); Column 5: S185 Turbo	1,769 kgPublished

Applicability unresolved · Not stated in the inspected views: Auxiliary Std Flow — Column 5: S185 Turbo.

Standard hydraulic flow
Observation and evidence	Value
Auxiliary Std Flow Column 1: S185 (2008); Column 2: S185 (2008); Column 3: S185 T2; Column 4: S185 (2003). Standard auxiliary flow. Gallon definition is unspecified; published unit pairs are retained. Published: 16.9 gpm / 64 l/min Hydraulic System · Auxiliary Std Flow · US and Metric; Column 1: S185 (2008); Column 2: S185 (2008); Column 3: S185 T2; Column 4: S185 (2003)	64 L/minPublished

Applicability unresolved · Published variants or rating rows differ; select the relevant source column and configuration. No single value is selected.

High hydraulic flow
Observation and evidence	Value
Auxiliary High Flow Column 1: S185 (2008); Column 2: S185 (2008); Column 3: S185 T2; Column 4: S185 (2003). High-flow auxiliary configuration; availability is not implied for blank source cells. Gallon definition is unspecified. Published: 26.4 gpm / 100 l/min Hydraulic System · Auxiliary High Flow · US and Metric; Column 1: S185 (2008); Column 2: S185 (2008); Column 3: S185 T2; Column 4: S185 (2003)	100 L/minPublished
Auxiliary High Flow Column 5: S185 Turbo. High-flow auxiliary configuration; availability is not implied for blank source cells. Gallon definition is unspecified. Published: 27 gpm / 102 l/min Hydraulic System · Auxiliary High Flow · US and Metric; Column 5: S185 Turbo	102 L/minPublished

Applicability unresolved · Published variants or rating rows differ; select the relevant source column and configuration. No single value is selected.

Hydraulic pressure
Observation and evidence	Value
System Relief @ Quick Couplers Column 1: S185 (2008); Column 2: S185 (2008); Column 3: S185 T2; Column 4: S185 (2003). Relief pressure at quick couplers; published rounding is retained. Published: 3300 psi / 228 bar Hydraulic System · System Relief @ Quick Couplers · US and Metric; Column 1: S185 (2008); Column 2: S185 (2008); Column 3: S185 T2; Column 4: S185 (2003)	228 barPublished
System Relief @ Quick Couplers Column 5: S185 Turbo. Relief pressure at quick couplers; published rounding is retained. Published: 3000 psi / 206.8 bar Hydraulic System · System Relief @ Quick Couplers · US and Metric; Column 5: S185 Turbo	206.8 barPublished

Configuration and source notes

The archive labels two separate columns S185 (2008), then S185 T2, S185 (2003) and S185 Turbo. These labels do not establish a complete production-year or serial range.
Standard auxiliary flow is blank for S185 Turbo; no flow value is borrowed from another column.
Source columns, left to right: Column 1: S185 (2008); Column 2: S185 (2008); Column 3: S185 T2; Column 4: S185 (2003); Column 5: S185 Turbo.
Identical values are grouped only when the source row and both published unit strings agree; all contributing columns remain identified. Blank cells mean not stated, never zero.
Specifications are for comparison and may include engineering calculations. Individual equipment varies; no verified serial range or complete model-year range is established.

Manufacturer sources

Bobcat Company: S185 Skid-Steer Loader (Non-Current Model)
Edition / publication date not stated. · Inspected 26 Oct 2026.
Inspected directly in a browser in US and Metric views. Source column identity and blank cells retained.
No complete model-year range or serial mapping is established.

Record reviewed 26 Oct 2026 by Codex (AI-assisted review; no independent human review). Transcription and second comparison of every in-scope value and source column against browser-captured manufacturer tables in US and Metric views; applicability limitations retained.
