Bobcat T190 specifications

Compact track loader · Historical T190 archive variants

Documented market

North America (English manufacturer page); country-specific and serial applicability not established.

Model years

Not established

Serial range

Not established

Evidence

Page heading and region selector · T190 Compact Track Loader (Non-Current Model); North America (EN) · Page

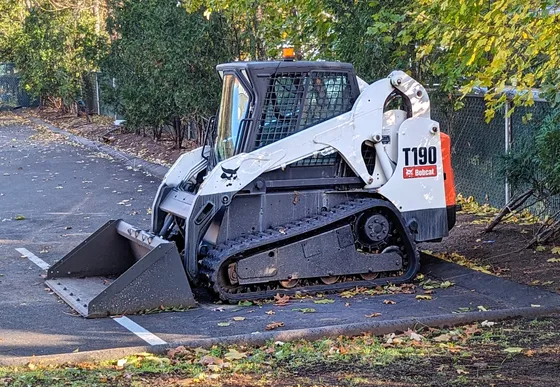

Bobcat T190 compact track loader parked with its bucket lowered. — Photo: Daderot / Wikimedia Commons · CC0 1.0Equipment shown may have different options or attachments.

Key facts

Operating weightUnresolved

Applicability unresolved. Published variants or rating rows differ; select the relevant source column and configuration. No single value is selected.

3,527 kgPublishedOperating Weight
3,453 kgPublishedOperating Weight
3,289 kgPublishedOperating Weight

Details and evidence

Machine width

1,676 mmPublished

Column 1: T190 Compact Track Loader; Column 2: T190 Compact Track Loader; Column 3: T190 Compact Track Loader. Overall machine width; bucket width is a separate source row.

Details and evidence

Engine powerUnresolved

Applicability unresolved. Published variants or rating rows differ; select the relevant source column and configuration. No single value is selected.

49.2 kWPublishedHorsepower
42 kWPublishedHorsepower

Details and evidence

Rated operating capacityUnresolved

Applicability unresolved. Published variants or rating rows differ; select the relevant source column and configuration. No single value is selected.

862 kgPublishedRated Operating Capacity
860 kgPublishedRated Operating Capacity

Details and evidence

Tipping loadUnresolved

Applicability unresolved. Published variants or rating rows differ; select the relevant source column and configuration. No single value is selected.

3,304 kgPublishedTipping Load
3,108 kgPublishedTipping Load
2,465 kgPublishedTipping Load

Details and evidence

Standard hydraulic flowUnresolved

Applicability unresolved. Published variants or rating rows differ; select the relevant source column and configuration. No single value is selected. Not stated in the inspected views: Auxiliary Std Flow — Column 3: T190 Compact Track Loader.

64 L/minPublishedAuxiliary Std Flow
62 L/minPublishedAuxiliary Std Flow

Details and evidence

Detailed specifications

Each row keeps its manufacturer label and configuration. Separate rows do not define one combined machine configuration.

Applicability unresolved · Published variants or rating rows differ; select the relevant source column and configuration. No single value is selected.

Operating weight
Observation and evidence	Value
Operating Weight Column 1: T190 Compact Track Loader. Included equipment is not specified in this row. Published: 7775 lbs / 3527 kg Performance · Operating Weight · US and Metric; Column 1: T190 Compact Track Loader	3,527 kgPublished
Operating Weight Column 2: T190 Compact Track Loader. Included equipment is not specified in this row. Published: 7612 lbs / 3453 kg Performance · Operating Weight · US and Metric; Column 2: T190 Compact Track Loader	3,453 kgPublished
Operating Weight Column 3: T190 Compact Track Loader. Included equipment is not specified in this row. Published: 7244 lbs / 3289 kg Performance · Operating Weight · US and Metric; Column 3: T190 Compact Track Loader	3,289 kgPublished

Source-supported

Machine width
Observation and evidence	Value
Overall Width Column 1: T190 Compact Track Loader; Column 2: T190 Compact Track Loader; Column 3: T190 Compact Track Loader. Overall machine width; bucket width is a separate source row. Published: 66 in / 1676 mm Dimensions · Overall Width · US and Metric; Column 1: T190 Compact Track Loader; Column 2: T190 Compact Track Loader; Column 3: T190 Compact Track Loader	1,676 mmPublished

Source-supported

Height
Observation and evidence	Value
Overall Height Column 1: T190 Compact Track Loader; Column 2: T190 Compact Track Loader; Column 3: T190 Compact Track Loader. Overall height; not raised-arm height. Published: 76.3 in / 1938 mm Dimensions · Overall Height · US and Metric; Column 1: T190 Compact Track Loader; Column 2: T190 Compact Track Loader; Column 3: T190 Compact Track Loader	1,938 mmPublished

Applicability unresolved · Published variants or rating rows differ; select the relevant source column and configuration. No single value is selected.

Length with bucket
Observation and evidence	Value
Length with Standard Bucket Column 1: T190 Compact Track Loader. With standard bucket. Published: 130.3 in / 3309 mm Dimensions · Length with Standard Bucket · US and Metric; Column 1: T190 Compact Track Loader	3,309 mmPublished
Length with Standard Bucket Column 2: T190 Compact Track Loader; Column 3: T190 Compact Track Loader. With standard bucket. Published: 130.3 in / 3310 mm Dimensions · Length with Standard Bucket · US and Metric; Column 2: T190 Compact Track Loader; Column 3: T190 Compact Track Loader	3,310 mmPublished

Applicability unresolved · Published variants or rating rows differ; select the relevant source column and configuration. No single value is selected.

Length without bucket / attachment
Observation and evidence	Value
Length without Attachment Column 1: T190 Compact Track Loader. Without attachment. Published: 101.9 in / 2588 mm Dimensions · Length without Attachment · US and Metric; Column 1: T190 Compact Track Loader	2,588 mmPublished
Length without Attachment Column 2: T190 Compact Track Loader; Column 3: T190 Compact Track Loader. Without attachment. Published: 101.8 in / 2586 mm Dimensions · Length without Attachment · US and Metric; Column 2: T190 Compact Track Loader; Column 3: T190 Compact Track Loader	2,586 mmPublished

Applicability unresolved · Published variants or rating rows differ; select the relevant source column and configuration. No single value is selected.

Engine power
Observation and evidence	Value
Horsepower Column 1: T190 Compact Track Loader; Column 2: T190 Compact Track Loader. Gross/net basis and horsepower definition are not stated; published values are retained. Published: 66 hp / 49.2 kw T190 Key Specifications · Horsepower · US and Metric; Column 1: T190 Compact Track Loader; Column 2: T190 Compact Track Loader	49.2 kWPublished
Horsepower Column 3: T190 Compact Track Loader. Gross/net basis and horsepower definition are not stated; published values are retained. Published: 56 hp / 42 kw T190 Key Specifications · Horsepower · US and Metric; Column 3: T190 Compact Track Loader	42 kWPublished

Applicability unresolved · Published variants or rating rows differ; select the relevant source column and configuration. No single value is selected.

Rated operating capacity
Observation and evidence	Value
Rated Operating Capacity Column 1: T190 Compact Track Loader; Column 2: T190 Compact Track Loader. Rating percentage and the relationship between generic, undercarriage and counterweight rows are not established by this table. Published: 1900 lbs / 862 kg Performance · Rated Operating Capacity · US and Metric; Column 1: T190 Compact Track Loader; Column 2: T190 Compact Track Loader	862 kgPublished
Rated Operating Capacity Column 3: T190 Compact Track Loader. Rating percentage and the relationship between generic, undercarriage and counterweight rows are not established by this table. Published: 1900 lbs / 860 kg Performance · Rated Operating Capacity · US and Metric; Column 3: T190 Compact Track Loader	860 kgPublished

Applicability unresolved · Published variants or rating rows differ; select the relevant source column and configuration. No single value is selected.

Tipping load
Observation and evidence	Value
Tipping Load Column 1: T190 Compact Track Loader. Undercarriage applies only where named in the row; generic and undercarriage rows are not assumed interchangeable. Published: 7283 lbs / 3304 kg Performance · Tipping Load · US and Metric; Column 1: T190 Compact Track Loader	3,304 kgPublished
Tipping Load Column 2: T190 Compact Track Loader. Undercarriage applies only where named in the row; generic and undercarriage rows are not assumed interchangeable. Published: 6851 lbs / 3108 kg Performance · Tipping Load · US and Metric; Column 2: T190 Compact Track Loader	3,108 kgPublished
Tipping Load Column 3: T190 Compact Track Loader. Undercarriage applies only where named in the row; generic and undercarriage rows are not assumed interchangeable. Published: 5430 lbs / 2465 kg Performance · Tipping Load · US and Metric; Column 3: T190 Compact Track Loader	2,465 kgPublished

Applicability unresolved · Published variants or rating rows differ; select the relevant source column and configuration. No single value is selected. Not stated in the inspected views: Auxiliary Std Flow — Column 3: T190 Compact Track Loader.

Standard hydraulic flow
Observation and evidence	Value
Auxiliary Std Flow Column 1: T190 Compact Track Loader. Standard auxiliary flow. Gallon definition is unspecified; published unit pairs are retained. Published: 16.9 gpm / 64 l/min Hydraulic System · Auxiliary Std Flow · US and Metric; Column 1: T190 Compact Track Loader	64 L/minPublished
Auxiliary Std Flow Column 2: T190 Compact Track Loader. Standard auxiliary flow. Gallon definition is unspecified; published unit pairs are retained. Published: 16.3 gpm / 62 l/min Hydraulic System · Auxiliary Std Flow · US and Metric; Column 2: T190 Compact Track Loader	62 L/minPublished

Applicability unresolved · Published variants or rating rows differ; select the relevant source column and configuration. No single value is selected.

High hydraulic flow
Observation and evidence	Value
Auxiliary High Flow Column 1: T190 Compact Track Loader. High-flow auxiliary configuration; availability is not implied for blank source cells. Gallon definition is unspecified. Published: 26.4 gpm / 99.9 l/min Hydraulic System · Auxiliary High Flow · US and Metric; Column 1: T190 Compact Track Loader	99.9 L/minPublished
Auxiliary High Flow Column 2: T190 Compact Track Loader. High-flow auxiliary configuration; availability is not implied for blank source cells. Gallon definition is unspecified. Published: 25.5 gpm / 96 l/min Hydraulic System · Auxiliary High Flow · US and Metric; Column 2: T190 Compact Track Loader	96 L/minPublished
Auxiliary High Flow Column 3: T190 Compact Track Loader. High-flow auxiliary configuration; availability is not implied for blank source cells. Gallon definition is unspecified. Published: 26.4 gpm / 100 l/min Hydraulic System · Auxiliary High Flow · US and Metric; Column 3: T190 Compact Track Loader	100 L/minPublished

Applicability unresolved · Published variants or rating rows differ; select the relevant source column and configuration. No single value is selected.

Hydraulic pressure
Observation and evidence	Value
System Relief @ Quick Couplers Column 1: T190 Compact Track Loader; Column 2: T190 Compact Track Loader. Relief pressure at quick couplers; published rounding is retained. Published: 3250 psi / 224 bar Hydraulic System · System Relief @ Quick Couplers · US and Metric; Column 1: T190 Compact Track Loader; Column 2: T190 Compact Track Loader	224 barPublished
System Relief @ Quick Couplers Column 3: T190 Compact Track Loader. Relief pressure at quick couplers; published rounding is retained. Published: 3300 psi / 227.5 bar Hydraulic System · System Relief @ Quick Couplers · US and Metric; Column 3: T190 Compact Track Loader	227.5 barPublished

Configuration and source notes

Three columns share the heading T190 Compact Track Loader. Column order does not establish production dates or emissions variants.
Standard auxiliary flow is blank in column 3. Published US/Metric pairs, including 25.5 gpm / 96 l/min and 7244 lbs / 3289 kg, are retained without silently correcting them.
Source columns, left to right: Column 1: T190 Compact Track Loader; Column 2: T190 Compact Track Loader; Column 3: T190 Compact Track Loader.
Identical values are grouped only when the source row and both published unit strings agree; all contributing columns remain identified. Blank cells mean not stated, never zero.
Specifications are for comparison and may include engineering calculations. Individual equipment varies; no verified serial range or complete model-year range is established.

Manufacturer sources

Bobcat Company: T190 Compact Track Loader (Non-Current Model)
Edition / publication date not stated. · Inspected 26 Oct 2026.
Inspected directly in a browser in US and Metric views. Source column identity and blank cells retained.
No complete model-year range or serial mapping is established.

Record reviewed 26 Oct 2026 by Codex (AI-assisted review; no independent human review). Transcription and second comparison of every in-scope value and source column against browser-captured manufacturer tables in US and Metric views; applicability limitations retained.
