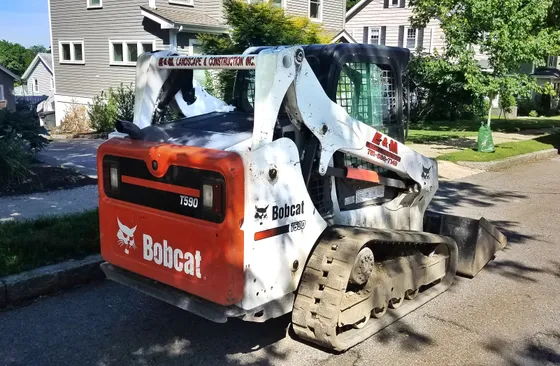

Bobcat T590 specifications
Compact track loader · Historical T590 archive variants
Documented applicability
- Documented market
- North America (English manufacturer page); country-specific and serial applicability not established.
- Model years
- Not established
- Serial range
- Not established
- Evidence
Key facts
Published unit pairs take precedence. Calculated equivalents are marked approximate; unspecified gallon and horsepower definitions stay as published.
Metric display selected.
- Operating weight
3,570 kgPublished
Column 1: T590; Column 2: T590. Included equipment is not specified in this row.
Details and evidence for operating weight- Machine width
1,704 mmPublished
Column 1: T590; Column 2: T590. Overall machine width; bucket width is a separate source row.
Details and evidence for machine width- Engine power
49.2 kWPublished
Column 1: T590; Column 2: T590. Gross/net basis and horsepower definition are not stated; published values are retained.
Details and evidence for engine power- Rated operating capacity
953 kgPublished
Column 1: T590; Column 2: T590. Rating percentage and the relationship between generic, undercarriage and counterweight rows are not established by this table.
Details and evidence for rated operating capacity- Tipping load
2,722 kgPublished
Column 1: T590; Column 2: T590. Undercarriage applies only where named in the row; generic and undercarriage rows are not assumed interchangeable.
Details and evidence for tipping load- Standard hydraulic flow
64.7 L/minPublished
Column 1: T590; Column 2: T590. Standard auxiliary flow. Gallon definition is unspecified; published unit pairs are retained.
Details and evidence for standard hydraulic flow
Detailed specifications
Each row keeps its manufacturer label and configuration. Separate rows do not define one combined machine configuration.
Source-supported
| Observation and evidence | Value |
|---|---|
Operating Weight Column 1: T590; Column 2: T590. Included equipment is not specified in this row. Published: 7870 lbs / 3570 kg Performance · Operating Weight · US and Metric; Column 1: T590; Column 2: T590 | 3,570 kgPublished |
Source-supported
| Observation and evidence | Value |
|---|---|
Overall Width Column 1: T590; Column 2: T590. Overall machine width; bucket width is a separate source row. Published: 67.1 in / 1704 mm Dimensions · Overall Width · US and Metric; Column 1: T590; Column 2: T590 | 1,704 mmPublished |
Source-supported
| Observation and evidence | Value |
|---|---|
Overall Height Column 1: T590; Column 2: T590. Overall height; not raised-arm height. Published: 77.8 in / 1972 mm Dimensions · Overall Height · US and Metric; Column 1: T590; Column 2: T590 | 1,972 mmPublished |
Source-supported
| Observation and evidence | Value |
|---|---|
Length with Standard Bucket Column 1: T590; Column 2: T590. With standard bucket. Published: 133 in / 3378 mm Dimensions · Length with Standard Bucket · US and Metric; Column 1: T590; Column 2: T590 | 3,378 mmPublished |
Source-supported
| Observation and evidence | Value |
|---|---|
Length without Attachment Column 1: T590; Column 2: T590. Without attachment. Published: 104.6 in / 2657 mm Dimensions · Length without Attachment · US and Metric; Column 1: T590; Column 2: T590 | 2,657 mmPublished |
Source-supported
| Observation and evidence | Value |
|---|---|
Horsepower Column 1: T590; Column 2: T590. Gross/net basis and horsepower definition are not stated; published values are retained. Published: 66 hp / 49.2 kw T590 Key Specifications · Horsepower · US and Metric; Column 1: T590; Column 2: T590 | 49.2 kWPublished |
Source-supported
| Observation and evidence | Value |
|---|---|
Rated Operating Capacity Column 1: T590; Column 2: T590. Rating percentage and the relationship between generic, undercarriage and counterweight rows are not established by this table. Published: 2100 lbs / 953 kg Performance · Rated Operating Capacity · US and Metric; Column 1: T590; Column 2: T590 | 953 kgPublished |
Source-supported
| Observation and evidence | Value |
|---|---|
Tipping Load Column 1: T590; Column 2: T590. Undercarriage applies only where named in the row; generic and undercarriage rows are not assumed interchangeable. Published: 6000 lbs / 2722 kg Performance · Tipping Load · US and Metric; Column 1: T590; Column 2: T590 | 2,722 kgPublished |
Source-supported
| Observation and evidence | Value |
|---|---|
Auxiliary Std Flow Column 1: T590; Column 2: T590. Standard auxiliary flow. Gallon definition is unspecified; published unit pairs are retained. Published: 17.1 gpm / 64.7 l/min Hydraulic System · Auxiliary Std Flow · US and Metric; Column 1: T590; Column 2: T590 | 64.7 L/minPublished |
Source-supported
| Observation and evidence | Value |
|---|---|
Auxiliary High Flow Column 1: T590; Column 2: T590. High-flow auxiliary configuration; availability is not implied for blank source cells. Gallon definition is unspecified. Published: 26.7 gpm / 101.1 l/min Hydraulic System · Auxiliary High Flow · US and Metric; Column 1: T590; Column 2: T590 | 101.1 L/minPublished |
Source-supported
| Observation and evidence | Value |
|---|---|
System Relief @ Quick Couplers Column 1: T590; Column 2: T590. Relief pressure at quick couplers; published rounding is retained. Published: 3500 psi / 24200 kPa Hydraulic System · System Relief @ Quick Couplers · US and Metric; Column 1: T590; Column 2: T590 | 24,200 kPaPublished |
Configuration and source notes
- The archive has two columns both named T590. Their eleven covered fields agree in the inspected views; neither column has an established year or serial range.
- The published height pair is 77.8 in / 1972 mm. It is retained as printed even though it is not an exact conversion.
- Source columns, left to right: Column 1: T590; Column 2: T590.
- Identical values are grouped only when the source row and both published unit strings agree; all contributing columns remain identified. Blank cells mean not stated, never zero.
- Specifications are for comparison and may include engineering calculations. Individual equipment varies; no verified serial range or complete model-year range is established.
Manufacturer sources
- Bobcat Company: T590 Compact Track Loader (Non-Current Model)
Edition / publication date not stated. · Inspected .
Inspected directly in a browser in US and Metric views. Source column identity and blank cells retained.
No complete model-year range or serial mapping is established.
Record reviewed by Codex (AI-assisted review; no independent human review). Transcription and second comparison of every in-scope value and source column against browser-captured manufacturer tables in US and Metric views; applicability limitations retained.
