Bobcat T770 specifications

Compact track loader · Historical T770 archive variants

Documented market

North America (English manufacturer page); country-specific and serial applicability not established.

Model years

Not established

Serial range

Not established

Evidence

Page heading and region selector · T770 Compact Track Loader (Non-Current Model); North America (EN) · Page

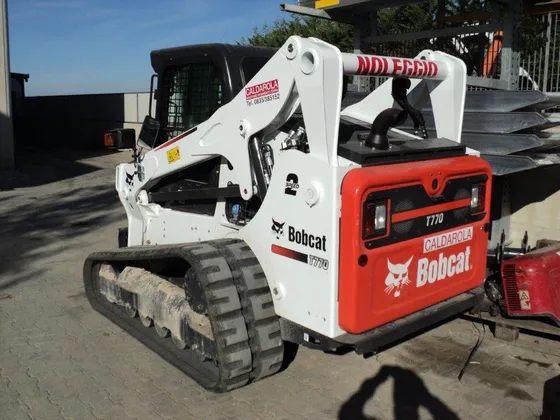

Rear and side view of a Bobcat T770 compact track loader in a yard; the T770 badge is visible. — Photo: Bismartmt / Wikimedia Commons · CC BY-SA 4.0 · Resized and compressed for display.Equipment shown may have different options or attachments.

Key facts

Operating weightUnresolved: Applicability unresolved. Published variants or rating rows differ; select the relevant source column and configuration. No single value is selected. Not stated in the inspected views: Operating Weight — Column 5: T770 T4 RS.
4,770 kgPublishedOperating Weight
4,683 kgPublishedOperating Weight
Details and evidence for operating weight
Machine widthUnresolved: Applicability unresolved. Not stated in the inspected views: Overall Width — Column 5: T770 T4 RS.
1,981 mmPublishedOverall Width
Details and evidence for machine width
Engine powerUnresolved: Applicability unresolved. Not stated in the inspected views: Horsepower — Column 5: T770 T4 RS.
68.6 kWPublishedHorsepower
Details and evidence for engine power
Rated operating capacityUnresolved: Applicability unresolved. Published variants or rating rows differ; select the relevant source column and configuration. No single value is selected. Not stated in the inspected views: ROC Solid Undercarriage — Column 3: T770 Compact Track Loader; ROC Solid Undercarriage — Column 4: T770 IT4; ROC Solid Undercarriage — Column 5: T770 T4 RS; Rated Operating Capacity 400 lb. Counterweight — Column 3: T770 Compact Track Loader; Rated Operating Capacity 400 lb. Counterweight — Column 4: T770 IT4; Rated Operating Capacity 400 lb. Counterweight — Column 5: T770 T4 RS; Rated Operating Capacity 300 lb. Counterweight — Column 3: T770 Compact Track Loader; Rated Operating Capacity 300 lb. Counterweight — Column 4: T770 IT4; Rated Operating Capacity 300 lb. Counterweight — Column 5: T770 T4 RS; Rated Operating Capacity 200 lb. Counterweight — Column 3: T770 Compact Track Loader; Rated Operating Capacity 200 lb. Counterweight — Column 4: T770 IT4; Rated Operating Capacity 200 lb. Counterweight — Column 5: T770 T4 RS; Rated Operating Capacity — Column 5: T770 T4 RS; ROC Suspension Undercarriage — Column 3: T770 Compact Track Loader; ROC Suspension Undercarriage — Column 4: T770 IT4; ROC Suspension Undercarriage — Column 5: T770 T4 RS.
1,576 kgPublishedROC Solid Undercarriage
1,690 kgPublishedRated Operating Capacity 400 lb. Counterweight
1,656 kgPublishedRated Operating Capacity 300 lb. Counterweight
1,622 kgPublishedRated Operating Capacity 200 lb. Counterweight
1,576 kgPublishedRated Operating Capacity
1,508 kgPublishedROC Suspension Undercarriage
Details and evidence for rated operating capacity
Tipping loadUnresolved: Applicability unresolved. Published variants or rating rows differ; select the relevant source column and configuration. No single value is selected. Not stated in the inspected views: Tipping Load — Column 5: T770 T4 RS; Tip Solid Undercarriage — Column 3: T770 Compact Track Loader; Tip Solid Undercarriage — Column 4: T770 IT4; Tip Solid Undercarriage — Column 5: T770 T4 RS; Tip Suspension Undercarriage — Column 3: T770 Compact Track Loader; Tip Suspension Undercarriage — Column 4: T770 IT4; Tip Suspension Undercarriage — Column 5: T770 T4 RS.
4,589 kgPublishedTipping Load
4,503 kgPublishedTipping Load
4,503 kgPublishedTip Solid Undercarriage
4,309 kgPublishedTip Suspension Undercarriage
Details and evidence for tipping load
Standard hydraulic flowUnresolved: Applicability unresolved. Not stated in the inspected views: Auxiliary Std Flow — Column 5: T770 T4 RS.
87.1 L/minPublishedAuxiliary Std Flow
Details and evidence for standard hydraulic flow

Detailed specifications

Each row keeps its manufacturer label and configuration. Separate rows do not define one combined machine configuration.

Operating weight
Observation and evidence	Value
Operating Weight Column 1: T770; Column 2: T770; Column 6: T770 T4 (RS); Column 7: T770 T4. Included equipment is not specified in this row. Published: 10515 lbs / 4770 kg Performance · Operating Weight · US and Metric; Column 1: T770; Column 2: T770; Column 6: T770 T4 (RS); Column 7: T770 T4	4,770 kgPublished
Operating Weight Column 3: T770 Compact Track Loader; Column 4: T770 IT4. Included equipment is not specified in this row. Published: 10327 lbs / 4683 kg Performance · Operating Weight · US and Metric; Column 3: T770 Compact Track Loader; Column 4: T770 IT4	4,683 kgPublished

Applicability unresolved · Not stated in the inspected views: Overall Width — Column 5: T770 T4 RS.

Machine width
Observation and evidence	Value
Overall Width Column 1: T770; Column 2: T770; Column 3: T770 Compact Track Loader; Column 4: T770 IT4; Column 6: T770 T4 (RS); Column 7: T770 T4. Overall machine width; bucket width is a separate source row. Published: 78 in / 1981 mm Dimensions · Overall Width · US and Metric; Column 1: T770; Column 2: T770; Column 3: T770 Compact Track Loader; Column 4: T770 IT4; Column 6: T770 T4 (RS); Column 7: T770 T4	1,981 mmPublished

Applicability unresolved · Not stated in the inspected views: Overall Height — Column 5: T770 T4 RS.

Height
Observation and evidence	Value
Overall Height Column 1: T770; Column 2: T770; Column 3: T770 Compact Track Loader; Column 4: T770 IT4; Column 6: T770 T4 (RS); Column 7: T770 T4. Overall height; not raised-arm height. Published: 81.3 in / 2065 mm Dimensions · Overall Height · US and Metric; Column 1: T770; Column 2: T770; Column 3: T770 Compact Track Loader; Column 4: T770 IT4; Column 6: T770 T4 (RS); Column 7: T770 T4	2,065 mmPublished

Applicability unresolved · Not stated in the inspected views: Length with Standard Bucket — Column 5: T770 T4 RS.

Length with bucket
Observation and evidence	Value
Length with Standard Bucket Column 1: T770; Column 2: T770; Column 3: T770 Compact Track Loader; Column 4: T770 IT4; Column 6: T770 T4 (RS); Column 7: T770 T4. With standard bucket. Published: 141.6 in / 3597 mm Dimensions · Length with Standard Bucket · US and Metric; Column 1: T770; Column 2: T770; Column 3: T770 Compact Track Loader; Column 4: T770 IT4; Column 6: T770 T4 (RS); Column 7: T770 T4	3,597 mmPublished

Applicability unresolved · Not stated in the inspected views: Length without Attachment — Column 5: T770 T4 RS.

Length without bucket / attachment
Observation and evidence	Value
Length without Attachment Column 1: T770; Column 2: T770; Column 3: T770 Compact Track Loader; Column 4: T770 IT4; Column 6: T770 T4 (RS); Column 7: T770 T4. Without attachment. Published: 114.3 in / 2903 mm Dimensions · Length without Attachment · US and Metric; Column 1: T770; Column 2: T770; Column 3: T770 Compact Track Loader; Column 4: T770 IT4; Column 6: T770 T4 (RS); Column 7: T770 T4	2,903 mmPublished

Applicability unresolved · Not stated in the inspected views: Horsepower — Column 5: T770 T4 RS.

Engine power
Observation and evidence	Value
Horsepower Column 1: T770; Column 2: T770; Column 3: T770 Compact Track Loader; Column 4: T770 IT4; Column 6: T770 T4 (RS); Column 7: T770 T4. Gross/net basis and horsepower definition are not stated; published values are retained. Published: 92 hp / 68.6 kw T770 Key Specifications · Horsepower · US and Metric; Column 1: T770; Column 2: T770; Column 3: T770 Compact Track Loader; Column 4: T770 IT4; Column 6: T770 T4 (RS); Column 7: T770 T4	68.6 kWPublished

Applicability unresolved · Published variants or rating rows differ; select the relevant source column and configuration. No single value is selected. Not stated in the inspected views: ROC Solid Undercarriage — Column 3: T770 Compact Track Loader; ROC Solid Undercarriage — Column 4: T770 IT4; ROC Solid Undercarriage — Column 5: T770 T4 RS; Rated Operating Capacity 400 lb. Counterweight — Column 3: T770 Compact Track Loader; Rated Operating Capacity 400 lb. Counterweight — Column 4: T770 IT4; Rated Operating Capacity 400 lb. Counterweight — Column 5: T770 T4 RS; Rated Operating Capacity 300 lb. Counterweight — Column 3: T770 Compact Track Loader; Rated Operating Capacity 300 lb. Counterweight — Column 4: T770 IT4; Rated Operating Capacity 300 lb. Counterweight — Column 5: T770 T4 RS; Rated Operating Capacity 200 lb. Counterweight — Column 3: T770 Compact Track Loader; Rated Operating Capacity 200 lb. Counterweight — Column 4: T770 IT4; Rated Operating Capacity 200 lb. Counterweight — Column 5: T770 T4 RS; Rated Operating Capacity — Column 5: T770 T4 RS; ROC Suspension Undercarriage — Column 3: T770 Compact Track Loader; ROC Suspension Undercarriage — Column 4: T770 IT4; ROC Suspension Undercarriage — Column 5: T770 T4 RS.

Rated operating capacity
Observation and evidence	Value
ROC Solid Undercarriage Column 1: T770; Column 2: T770; Column 6: T770 T4 (RS); Column 7: T770 T4. Rating percentage and the relationship between generic, undercarriage and counterweight rows are not established by this table. Published: 3475 lbs / 1576 kg Performance · ROC Solid Undercarriage · US and Metric; Column 1: T770; Column 2: T770; Column 6: T770 T4 (RS); Column 7: T770 T4	1,576 kgPublished
Rated Operating Capacity 400 lb. Counterweight Column 1: T770; Column 2: T770; Column 6: T770 T4 (RS); Column 7: T770 T4. Rating percentage and the relationship between generic, undercarriage and counterweight rows are not established by this table. Published: 3725 lbs / 1690 kg Performance · Rated Operating Capacity 400 lb. Counterweight · US and Metric; Column 1: T770; Column 2: T770; Column 6: T770 T4 (RS); Column 7: T770 T4	1,690 kgPublished
Rated Operating Capacity 300 lb. Counterweight Column 1: T770; Column 2: T770; Column 6: T770 T4 (RS); Column 7: T770 T4. Rating percentage and the relationship between generic, undercarriage and counterweight rows are not established by this table. Published: 3650 lbs / 1656 kg Performance · Rated Operating Capacity 300 lb. Counterweight · US and Metric; Column 1: T770; Column 2: T770; Column 6: T770 T4 (RS); Column 7: T770 T4	1,656 kgPublished
Rated Operating Capacity 200 lb. Counterweight Column 1: T770; Column 2: T770; Column 6: T770 T4 (RS); Column 7: T770 T4. Rating percentage and the relationship between generic, undercarriage and counterweight rows are not established by this table. Published: 3575 lbs / 1622 kg Performance · Rated Operating Capacity 200 lb. Counterweight · US and Metric; Column 1: T770; Column 2: T770; Column 6: T770 T4 (RS); Column 7: T770 T4	1,622 kgPublished
Rated Operating Capacity Column 1: T770; Column 2: T770; Column 3: T770 Compact Track Loader; Column 4: T770 IT4; Column 6: T770 T4 (RS); Column 7: T770 T4. Rating percentage and the relationship between generic, undercarriage and counterweight rows are not established by this table. Published: 3475 lbs / 1576 kg Performance · Rated Operating Capacity · US and Metric; Column 1: T770; Column 2: T770; Column 3: T770 Compact Track Loader; Column 4: T770 IT4; Column 6: T770 T4 (RS); Column 7: T770 T4	1,576 kgPublished
ROC Suspension Undercarriage Column 1: T770; Column 2: T770; Column 6: T770 T4 (RS); Column 7: T770 T4. Rating percentage and the relationship between generic, undercarriage and counterweight rows are not established by this table. This row appears only in Metric view. Published: 1508 kg Performance · ROC Suspension Undercarriage · Metric; Column 1: T770; Column 2: T770; Column 6: T770 T4 (RS); Column 7: T770 T4	1,508 kgPublished

Tipping load
Observation and evidence	Value
Tipping Load Column 1: T770; Column 2: T770; Column 6: T770 T4 (RS); Column 7: T770 T4. Undercarriage applies only where named in the row; generic and undercarriage rows are not assumed interchangeable. Published: 10117 lbs / 4589 kg Performance · Tipping Load · US and Metric; Column 1: T770; Column 2: T770; Column 6: T770 T4 (RS); Column 7: T770 T4	4,589 kgPublished
Tipping Load Column 3: T770 Compact Track Loader; Column 4: T770 IT4. Undercarriage applies only where named in the row; generic and undercarriage rows are not assumed interchangeable. Published: 9929 lbs / 4503 kg Performance · Tipping Load · US and Metric; Column 3: T770 Compact Track Loader; Column 4: T770 IT4	4,503 kgPublished
Tip Solid Undercarriage Column 1: T770; Column 2: T770; Column 6: T770 T4 (RS); Column 7: T770 T4. Undercarriage applies only where named in the row; generic and undercarriage rows are not assumed interchangeable. This row appears only in Metric view. Published: 4503 kg Performance · Tip Solid Undercarriage · Metric; Column 1: T770; Column 2: T770; Column 6: T770 T4 (RS); Column 7: T770 T4	4,503 kgPublished
Tip Suspension Undercarriage Column 1: T770; Column 2: T770; Column 6: T770 T4 (RS); Column 7: T770 T4. Undercarriage applies only where named in the row; generic and undercarriage rows are not assumed interchangeable. This row appears only in Metric view. Published: 4309 kg Performance · Tip Suspension Undercarriage · Metric; Column 1: T770; Column 2: T770; Column 6: T770 T4 (RS); Column 7: T770 T4	4,309 kgPublished

Applicability unresolved · Not stated in the inspected views: Auxiliary Std Flow — Column 5: T770 T4 RS.

Standard hydraulic flow
Observation and evidence	Value
Auxiliary Std Flow Column 1: T770; Column 2: T770; Column 3: T770 Compact Track Loader; Column 4: T770 IT4; Column 6: T770 T4 (RS); Column 7: T770 T4. Standard auxiliary flow. Gallon definition is unspecified; published unit pairs are retained. Published: 23 gpm / 87.1 l/min Hydraulic System · Auxiliary Std Flow · US and Metric; Column 1: T770; Column 2: T770; Column 3: T770 Compact Track Loader; Column 4: T770 IT4; Column 6: T770 T4 (RS); Column 7: T770 T4	87.1 L/minPublished

High hydraulic flow
Observation and evidence	Value
Auxiliary High Flow Column 1: T770; Column 2: T770; Column 4: T770 IT4; Column 6: T770 T4 (RS); Column 7: T770 T4. High-flow auxiliary configuration; availability is not implied for blank source cells. Gallon definition is unspecified. Published: 36.6 gpm / 138.5 l/min Hydraulic System · Auxiliary High Flow · US and Metric; Column 1: T770; Column 2: T770; Column 4: T770 IT4; Column 6: T770 T4 (RS); Column 7: T770 T4	138.5 L/minPublished
Auxiliary High Flow Column 3: T770 Compact Track Loader. High-flow auxiliary configuration; availability is not implied for blank source cells. Gallon definition is unspecified. Published: 36.5 gpm / 138.2 l/min Hydraulic System · Auxiliary High Flow · US and Metric; Column 3: T770 Compact Track Loader	138.2 L/minPublished

Hydraulic pressure
Observation and evidence	Value
System Relief @ Quick Couplers Column 1: T770; Column 2: T770; Column 6: T770 T4 (RS); Column 7: T770 T4. Relief pressure at quick couplers; published rounding is retained. Published: 3450 psi / 23786.9 kPa Hydraulic System · System Relief @ Quick Couplers · US and Metric; Column 1: T770; Column 2: T770; Column 6: T770 T4 (RS); Column 7: T770 T4	23,786.9 kPaPublished
System Relief @ Quick Couplers Column 3: T770 Compact Track Loader; Column 4: T770 IT4. Relief pressure at quick couplers; published rounding is retained. Published: 3500 psi / 24200 kPa Hydraulic System · System Relief @ Quick Couplers · US and Metric; Column 3: T770 Compact Track Loader; Column 4: T770 IT4	24,200 kPaPublished

Configuration and source notes

The archive has seven columns. Column 5, T770 T4 RS, contains no numerical values for the eleven fields covered here; it is not filled from T770 T4 (RS) in column 6.
Solid, suspension and counterweight capacities are preserved separately. The generic tipping load differs from the undercarriage-specific rows.
Source columns, left to right: Column 1: T770; Column 2: T770; Column 3: T770 Compact Track Loader; Column 4: T770 IT4; Column 5: T770 T4 RS; Column 6: T770 T4 (RS); Column 7: T770 T4.
Identical values are grouped only when the source row and both published unit strings agree; all contributing columns remain identified. Blank cells mean not stated, never zero.
Specifications are for comparison and may include engineering calculations. Individual equipment varies; no verified serial range or complete model-year range is established.

Manufacturer sources

Bobcat Company: T770 Compact Track Loader (Non-Current Model)
Edition / publication date not stated. · Inspected 26 Oct 2026.
Inspected directly in a browser in US and Metric views. Source column identity and blank cells retained.
No complete model-year range or serial mapping is established.

Record reviewed 26 Oct 2026 by Codex (AI-assisted review; no independent human review). Transcription and second comparison of every in-scope value and source column against browser-captured manufacturer tables in US and Metric views; applicability limitations retained.
