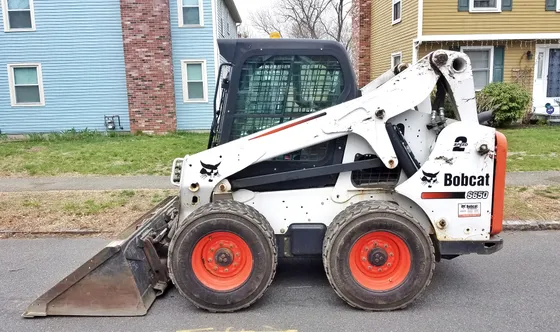

Bobcat S650 specifications
Skid-steer loader · Historical S650 archive variants
Documented applicability
- Documented market
- North America (English manufacturer page); country-specific and serial applicability not established.
- Model years
- Not established
- Serial range
- Not established
- Evidence
Key facts
Published unit pairs take precedence. Calculated equivalents are marked approximate; unspecified gallon and horsepower definitions stay as published.
Metric display selected.
- Operating weightUnresolved
Applicability unresolved. Published variants or rating rows differ; select the relevant source column and configuration. No single value is selected.
- 3,777 kgPublishedOperating Weight
- 3,657 kgPublishedOperating Weight
- Machine width
1,832 mmPublished
Column 1: S650 Skid Steer; Column 2: S650. Overall machine width; bucket width is a separate source row.
Details and evidence for machine width- Engine powerUnresolved
Applicability unresolved. Published variants or rating rows differ; select the relevant source column and configuration. No single value is selected.
- 55.4 kWPublishedHorsepower
- 55.2 kWPublishedHorsepower
- Rated operating capacity
1,220 kgPublished
Column 1: S650 Skid Steer; Column 2: S650. Rating percentage and the relationship between generic, undercarriage and counterweight rows are not established by this table.
Details and evidence for rated operating capacity- Tipping load
2,440 kgPublished
Column 1: S650 Skid Steer; Column 2: S650. Undercarriage applies only where named in the row; generic and undercarriage rows are not assumed interchangeable.
Details and evidence for tipping load- Standard hydraulic flow
87.1 L/minPublished
Column 1: S650 Skid Steer; Column 2: S650. Standard auxiliary flow. Gallon definition is unspecified; published unit pairs are retained.
Details and evidence for standard hydraulic flow
Detailed specifications
Each row keeps its manufacturer label and configuration. Separate rows do not define one combined machine configuration.
Applicability unresolved · Published variants or rating rows differ; select the relevant source column and configuration. No single value is selected.
| Observation and evidence | Value |
|---|---|
Operating Weight Column 1: S650 Skid Steer. Included equipment is not specified in this row. Published: 8327 lbs / 3777 kg Performance · Operating Weight · US and Metric; Column 1: S650 Skid Steer | 3,777 kgPublished |
Operating Weight Column 2: S650. Included equipment is not specified in this row. Published: 8061 lbs / 3657 kg Performance · Operating Weight · US and Metric; Column 2: S650 | 3,657 kgPublished |
Source-supported
| Observation and evidence | Value |
|---|---|
Overall Width Column 1: S650 Skid Steer; Column 2: S650. Overall machine width; bucket width is a separate source row. Published: 72.1 in / 1832 mm Dimensions · Overall Width · US and Metric; Column 1: S650 Skid Steer; Column 2: S650 | 1,832 mmPublished |
Source-supported
| Observation and evidence | Value |
|---|---|
Overall Height Column 1: S650 Skid Steer; Column 2: S650. Overall height; not raised-arm height. Published: 81.3 in / 2065 mm Dimensions · Overall Height · US and Metric; Column 1: S650 Skid Steer; Column 2: S650 | 2,065 mmPublished |
Source-supported
| Observation and evidence | Value |
|---|---|
Length with Standard Bucket Column 1: S650 Skid Steer; Column 2: S650. With standard bucket. Published: 136.8 in / 3474 mm Dimensions · Length with Standard Bucket · US and Metric; Column 1: S650 Skid Steer; Column 2: S650 | 3,474 mmPublished |
Source-supported
| Observation and evidence | Value |
|---|---|
Length without Attachment Column 1: S650 Skid Steer; Column 2: S650. Without attachment. Published: 108.4 in / 2753 mm Dimensions · Length without Attachment · US and Metric; Column 1: S650 Skid Steer; Column 2: S650 | 2,753 mmPublished |
Applicability unresolved · Published variants or rating rows differ; select the relevant source column and configuration. No single value is selected.
| Observation and evidence | Value |
|---|---|
Horsepower Column 1: S650 Skid Steer. Gross/net basis and horsepower definition are not stated; published values are retained. Published: 74.3 hp / 55.4 kw S650 Key Specifications · Horsepower · US and Metric; Column 1: S650 Skid Steer | 55.4 kWPublished |
Horsepower Column 2: S650. Gross/net basis and horsepower definition are not stated; published values are retained. Published: 74 hp / 55.2 kw S650 Key Specifications · Horsepower · US and Metric; Column 2: S650 | 55.2 kWPublished |
Source-supported
| Observation and evidence | Value |
|---|---|
Rated Operating Capacity Column 1: S650 Skid Steer; Column 2: S650. Rating percentage and the relationship between generic, undercarriage and counterweight rows are not established by this table. Published: 2690 lbs / 1220 kg Performance · Rated Operating Capacity · US and Metric; Column 1: S650 Skid Steer; Column 2: S650 | 1,220 kgPublished |
Source-supported
| Observation and evidence | Value |
|---|---|
Tipping Load Column 1: S650 Skid Steer; Column 2: S650. Undercarriage applies only where named in the row; generic and undercarriage rows are not assumed interchangeable. Published: 5380 lbs / 2440 kg Performance · Tipping Load · US and Metric; Column 1: S650 Skid Steer; Column 2: S650 | 2,440 kgPublished |
Source-supported
| Observation and evidence | Value |
|---|---|
Auxiliary Std Flow Column 1: S650 Skid Steer; Column 2: S650. Standard auxiliary flow. Gallon definition is unspecified; published unit pairs are retained. Published: 23 gpm / 87.1 l/min Hydraulic System · Auxiliary Std Flow · US and Metric; Column 1: S650 Skid Steer; Column 2: S650 | 87.1 L/minPublished |
Applicability unresolved · Not stated in the inspected views: Auxiliary High Flow — Column 2: S650.
| Observation and evidence | Value |
|---|---|
Auxiliary High Flow Column 1: S650 Skid Steer. High-flow auxiliary configuration; availability is not implied for blank source cells. Gallon definition is unspecified. Published: 30.5 gpm / 115.5 l/min Hydraulic System · Auxiliary High Flow · US and Metric; Column 1: S650 Skid Steer | 115.5 L/minPublished |
Source-supported
| Observation and evidence | Value |
|---|---|
System Relief @ Quick Couplers Column 1: S650 Skid Steer; Column 2: S650. Relief pressure at quick couplers; published rounding is retained. Published: 3500 psi / 242 bar | 242 barPublished |
Configuration and source notes
- Historical archive columns are retained. The separately marketed S650 Classic is outside this record.
- High-flow values appear only in column 1, S650 Skid Steer; the blank S650 column does not prove that high flow was unavailable.
- Source columns, left to right: Column 1: S650 Skid Steer; Column 2: S650.
- Identical values are grouped only when the source row and both published unit strings agree; all contributing columns remain identified. Blank cells mean not stated, never zero.
- Specifications are for comparison and may include engineering calculations. Individual equipment varies; no verified serial range or complete model-year range is established.
Manufacturer sources
- Bobcat Company: S650 Skid-Steer Loader (Non-Current Model)
Edition / publication date not stated. · Inspected .
Inspected directly in a browser in US and Metric views. Source column identity and blank cells retained.
No complete model-year range or serial mapping is established.
Record reviewed by Codex (AI-assisted review; no independent human review). Transcription and second comparison of every in-scope value and source column against browser-captured manufacturer tables in US and Metric views; applicability limitations retained.
