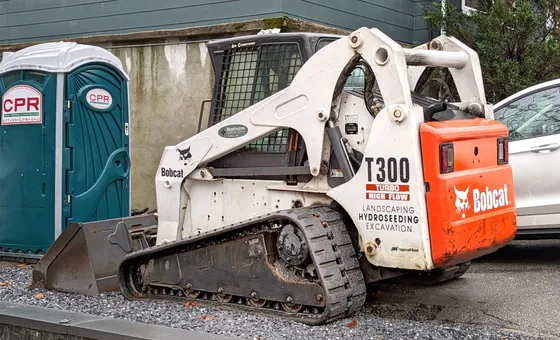

Bobcat T300 specifications
Compact track loader · Historical T300 archive variants
Documented applicability
- Documented market
- North America (English manufacturer page); country-specific and serial applicability not established.
- Model years
- Not established
- Serial range
- Not established
- Evidence
Key facts
Published unit pairs take precedence. Calculated equivalents are marked approximate; unspecified gallon and horsepower definitions stay as published.
Metric display selected.
- Operating weightUnresolved
Applicability unresolved. Published variants or rating rows differ; select the relevant source column and configuration. No single value is selected.
- 4,401 kgPublishedOperating Weight
- 4,243 kgPublishedOperating Weight
- Machine width
1,981 mmPublished
Column 1: T300 Compact Track Loader; Column 2: T300 Compact Track Loader; Column 3: T300 Compact Track Loader. Overall machine width; bucket width is a separate source row.
Details and evidence for machine width- Engine power
60.4 kWPublished
Column 1: T300 Compact Track Loader; Column 2: T300 Compact Track Loader; Column 3: T300 Compact Track Loader. Gross/net basis and horsepower definition are not stated; published values are retained.
Details and evidence for engine power- Rated operating capacityUnresolved
Applicability unresolved. Published variants or rating rows differ; select the relevant source column and configuration. No single value is selected.
- 1,360 kgPublishedRated Operating Capacity
- 1,362 kgPublishedRated Operating Capacity
- 1,361 kgPublishedRated Operating Capacity
- Tipping loadUnresolved
Applicability unresolved. Published variants or rating rows differ; select the relevant source column and configuration. No single value is selected.
- 4,177 kgPublishedTipping Load
- 3,916 kgPublishedTipping Load
- Standard hydraulic flow
80.2 L/minPublished
Column 1: T300 Compact Track Loader; Column 2: T300 Compact Track Loader; Column 3: T300 Compact Track Loader. Standard auxiliary flow. Gallon definition is unspecified; published unit pairs are retained.
Details and evidence for standard hydraulic flow
Detailed specifications
Each row keeps its manufacturer label and configuration. Separate rows do not define one combined machine configuration.
Applicability unresolved · Published variants or rating rows differ; select the relevant source column and configuration. No single value is selected.
| Observation and evidence | Value |
|---|---|
Operating Weight Column 1: T300 Compact Track Loader; Column 2: T300 Compact Track Loader. Included equipment is not specified in this row. Published: 9702 lbs / 4401 kg | 4,401 kgPublished |
Operating Weight Column 3: T300 Compact Track Loader. Included equipment is not specified in this row. Published: 9354 lbs / 4243 kg Performance · Operating Weight · US and Metric; Column 3: T300 Compact Track Loader | 4,243 kgPublished |
Source-supported
| Observation and evidence | Value |
|---|---|
Overall Width Column 1: T300 Compact Track Loader; Column 2: T300 Compact Track Loader; Column 3: T300 Compact Track Loader. Overall machine width; bucket width is a separate source row. Published: 78 in / 1981 mm | 1,981 mmPublished |
Source-supported
| Observation and evidence | Value |
|---|---|
Overall Height Column 1: T300 Compact Track Loader; Column 2: T300 Compact Track Loader; Column 3: T300 Compact Track Loader. Overall height; not raised-arm height. Published: 80.9 in / 2055 mm | 2,055 mmPublished |
Source-supported
| Observation and evidence | Value |
|---|---|
Length with Standard Bucket Column 1: T300 Compact Track Loader; Column 2: T300 Compact Track Loader; Column 3: T300 Compact Track Loader. With standard bucket. Published: 142.9 in / 3630 mm | 3,630 mmPublished |
Source-supported
| Observation and evidence | Value |
|---|---|
Length without Attachment Column 1: T300 Compact Track Loader; Column 2: T300 Compact Track Loader; Column 3: T300 Compact Track Loader. Without attachment. Published: 114.5 in / 2908 mm | 2,908 mmPublished |
Source-supported
| Observation and evidence | Value |
|---|---|
Horsepower Column 1: T300 Compact Track Loader; Column 2: T300 Compact Track Loader; Column 3: T300 Compact Track Loader. Gross/net basis and horsepower definition are not stated; published values are retained. Published: 81 hp / 60.4 kw | 60.4 kWPublished |
Applicability unresolved · Published variants or rating rows differ; select the relevant source column and configuration. No single value is selected.
| Observation and evidence | Value |
|---|---|
Rated Operating Capacity Column 1: T300 Compact Track Loader. Rating percentage and the relationship between generic, undercarriage and counterweight rows are not established by this table. Published: 3000 lbs / 1360 kg Performance · Rated Operating Capacity · US and Metric; Column 1: T300 Compact Track Loader | 1,360 kgPublished |
Rated Operating Capacity Column 2: T300 Compact Track Loader. Rating percentage and the relationship between generic, undercarriage and counterweight rows are not established by this table. Published: 3000 lbs / 1362 kg Performance · Rated Operating Capacity · US and Metric; Column 2: T300 Compact Track Loader | 1,362 kgPublished |
Rated Operating Capacity Column 3: T300 Compact Track Loader. Rating percentage and the relationship between generic, undercarriage and counterweight rows are not established by this table. Published: 3000 lbs / 1361 kg Performance · Rated Operating Capacity · US and Metric; Column 3: T300 Compact Track Loader | 1,361 kgPublished |
Applicability unresolved · Published variants or rating rows differ; select the relevant source column and configuration. No single value is selected.
| Observation and evidence | Value |
|---|---|
Tipping Load Column 1: T300 Compact Track Loader; Column 2: T300 Compact Track Loader. Undercarriage applies only where named in the row; generic and undercarriage rows are not assumed interchangeable. Published: 9208 lbs / 4177 kg | 4,177 kgPublished |
Tipping Load Column 3: T300 Compact Track Loader. Undercarriage applies only where named in the row; generic and undercarriage rows are not assumed interchangeable. Published: 8633 lbs / 3916 kg Performance · Tipping Load · US and Metric; Column 3: T300 Compact Track Loader | 3,916 kgPublished |
Source-supported
| Observation and evidence | Value |
|---|---|
Auxiliary Std Flow Column 1: T300 Compact Track Loader; Column 2: T300 Compact Track Loader; Column 3: T300 Compact Track Loader. Standard auxiliary flow. Gallon definition is unspecified; published unit pairs are retained. Published: 21.2 gpm / 80.2 l/min | 80.2 L/minPublished |
Applicability unresolved · Published variants or rating rows differ; select the relevant source column and configuration. No single value is selected.
| Observation and evidence | Value |
|---|---|
Auxiliary High Flow Column 1: T300 Compact Track Loader; Column 2: T300 Compact Track Loader. High-flow or super-flow auxiliary configuration as named in the row; availability is not implied for blank source cells. Gallon definition is unspecified. Published: 37 gpm / 140.1 l/min | 140.1 L/minPublished |
Auxiliary High Flow Column 3: T300 Compact Track Loader. High-flow or super-flow auxiliary configuration as named in the row; availability is not implied for blank source cells. Gallon definition is unspecified. Published: 37 gpm / 140 l/min Hydraulic System · Auxiliary High Flow · US and Metric; Column 3: T300 Compact Track Loader | 140 L/minPublished |
Applicability unresolved · Published variants or rating rows differ; select the relevant source column and configuration. No single value is selected.
| Observation and evidence | Value |
|---|---|
System Relief @ Quick Couplers Column 1: T300 Compact Track Loader. Pressure basis and hydraulic configuration follow the row label; published rounding is retained. Published: 3300 psi / 228 bar | 228 barPublished |
System Relief @ Quick Couplers Column 2: T300 Compact Track Loader; Column 3: T300 Compact Track Loader. Pressure basis and hydraulic configuration follow the row label; published rounding is retained. Published: 3300 psi / 227.5 bar | 227.5 barPublished |
Configuration and source notes
- Three columns share the heading T300 Compact Track Loader; weight, capacity, tipping load, high flow and pressure observations remain distinct wherever the published unit strings differ.
- Source columns, left to right: Column 1: T300 Compact Track Loader; Column 2: T300 Compact Track Loader; Column 3: T300 Compact Track Loader.
- Identical values are grouped only when the source row and both published unit strings agree; all contributing columns remain identified. Blank cells mean not stated, never zero.
- Specifications are for comparison and may include engineering calculations. Individual equipment varies; no verified serial range or complete model-year range is established.
Manufacturer sources
- Bobcat Company: T300 Compact Track Loader (Non-Current Model)
Edition / publication date not stated. · Inspected .
Inspected directly in a browser in US and Metric views. Source column identity and blank cells retained.
No complete model-year range or serial mapping is established.
Record reviewed by Codex (AI-assisted review; no independent human review). Transcription and second comparison of every in-scope value and source column against browser-captured manufacturer tables in US and Metric views; applicability limitations retained.
