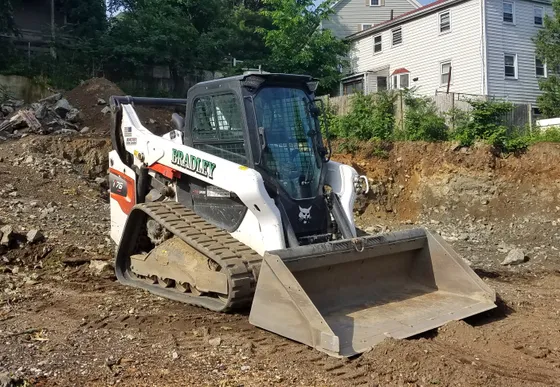

Bobcat T76 specifications
Compact track loader · Original T76
Documented applicability
- Documented market
- North America (English manufacturer page); country-specific and serial applicability not established.
- Model years
- Not established
- Serial range
- Not established
- Evidence
Key facts
Published unit pairs take precedence. Calculated equivalents are marked approximate; unspecified gallon and horsepower definitions stay as published.
Metric display selected.
- Operating weight
4,350 kgPublished
Column 1: T76. Included equipment is not specified in this row.
Details and evidence for operating weight- Machine width
1,866.1 mmPublished
Column 1: T76. Overall machine width; bucket width is a separate source row.
Details and evidence for machine width- Engine power
55.2 kWPublished
Column 1: T76. Gross/net basis and horsepower definition are not stated; published values are retained.
Details and evidence for engine power- Rated operating capacityUnresolved
Applicability unresolved. Published variants or rating rows differ; select the relevant source column and configuration. No single value is selected.
- 1,315 kgPublishedROC Solid Undercarriage
- 1,406 kgPublishedRated Operating Capacity 300 lb. Counterweight
- 1,372 kgPublishedRated Operating Capacity 200 lb. Counterweight
- 1,315 kgPublishedRated Operating Capacity
- 1,270 kgPublishedROC Suspension Undercarriage
- Tipping loadUnresolved
Applicability unresolved. Published variants or rating rows differ; select the relevant source column and configuration. No single value is selected.
- 3,944 kgPublishedTipping Load
- 3,758 kgPublishedTip Solid Undercarriage
- 3,628 kgPublishedTip Suspension Undercarriage
- Standard hydraulic flow
88.1 L/minPublished
Column 1: T76. Standard auxiliary flow. Gallon definition is unspecified; published unit pairs are retained.
Details and evidence for standard hydraulic flow
Detailed specifications
Each row keeps its manufacturer label and configuration. Separate rows do not define one combined machine configuration.
Source-supported
| Observation and evidence | Value |
|---|---|
Operating Weight Column 1: T76. Included equipment is not specified in this row. Published: 9592 lbs / 4350 kg Performance · Operating Weight · US and Metric; Column 1: T76 | 4,350 kgPublished |
Source-supported
| Observation and evidence | Value |
|---|---|
Overall Width Column 1: T76. Overall machine width; bucket width is a separate source row. Published: 73.5 in / 1866.1 mm | 1,866.1 mmPublished |
Source-supported
| Observation and evidence | Value |
|---|---|
Overall Height Column 1: T76. Overall height; not raised-arm height. Published: 81.9 in / 2079.4 mm | 2,079.4 mmPublished |
Source-supported
| Observation and evidence | Value |
|---|---|
Length with Standard Bucket Column 1: T76. With standard bucket. Published: 142.3 in / 3614.8 mm Dimensions · Length with Standard Bucket · US and Metric; Column 1: T76 | 3,614.8 mmPublished |
Source-supported
| Observation and evidence | Value |
|---|---|
Length without Attachment Column 1: T76. Without attachment. Published: 114 in / 2895.1 mm Dimensions · Length without Attachment · US and Metric; Column 1: T76 | 2,895.1 mmPublished |
Source-supported
| Observation and evidence | Value |
|---|---|
Horsepower Column 1: T76. Gross/net basis and horsepower definition are not stated; published values are retained. Published: 74 hp / 55.2 kw T76 Key Specifications · Horsepower · US and Metric; Column 1: T76 | 55.2 kWPublished |
Applicability unresolved · Published variants or rating rows differ; select the relevant source column and configuration. No single value is selected.
| Observation and evidence | Value |
|---|---|
ROC Solid Undercarriage Column 1: T76. Rating percentage and the relationship between generic, undercarriage and counterweight rows are not established by this table. Published: 2900 lbs / 1315 kg Performance · ROC Solid Undercarriage · US and Metric; Column 1: T76 | 1,315 kgPublished |
Rated Operating Capacity 300 lb. Counterweight Column 1: T76. Rating percentage and the relationship between generic, undercarriage and counterweight rows are not established by this table. Published: 3100 lbs / 1406 kg Performance · Rated Operating Capacity 300 lb. Counterweight · US and Metric; Column 1: T76 | 1,406 kgPublished |
Rated Operating Capacity 200 lb. Counterweight Column 1: T76. Rating percentage and the relationship between generic, undercarriage and counterweight rows are not established by this table. Published: 3025 lbs / 1372 kg Performance · Rated Operating Capacity 200 lb. Counterweight · US and Metric; Column 1: T76 | 1,372 kgPublished |
Rated Operating Capacity Column 1: T76. Rating percentage and the relationship between generic, undercarriage and counterweight rows are not established by this table. Published: 2900 lbs / 1315 kg Performance · Rated Operating Capacity · US and Metric; Column 1: T76 | 1,315 kgPublished |
ROC Suspension Undercarriage Column 1: T76. Rating percentage and the relationship between generic, undercarriage and counterweight rows are not established by this table. This row appears only in Metric view. Published: 1270 kg Performance · ROC Suspension Undercarriage · Metric; Column 1: T76 | 1,270 kgPublished |
Applicability unresolved · Published variants or rating rows differ; select the relevant source column and configuration. No single value is selected.
| Observation and evidence | Value |
|---|---|
Tipping Load Column 1: T76. Undercarriage applies only where named in the row; generic and undercarriage rows are not assumed interchangeable. Published: 8695 lbs / 3944 kg | 3,944 kgPublished |
Tip Solid Undercarriage Column 1: T76. Undercarriage applies only where named in the row; generic and undercarriage rows are not assumed interchangeable. This row appears only in Metric view. Published: 3758 kg Performance · Tip Solid Undercarriage · Metric; Column 1: T76 | 3,758 kgPublished |
Tip Suspension Undercarriage Column 1: T76. Undercarriage applies only where named in the row; generic and undercarriage rows are not assumed interchangeable. This row appears only in Metric view. Published: 3628 kg Performance · Tip Suspension Undercarriage · Metric; Column 1: T76 | 3,628 kgPublished |
Source-supported
| Observation and evidence | Value |
|---|---|
Auxiliary Std Flow Column 1: T76. Standard auxiliary flow. Gallon definition is unspecified; published unit pairs are retained. Published: 23.3 gpm / 88.1 l/min Hydraulic System · Auxiliary Std Flow · US and Metric; Column 1: T76 | 88.1 L/minPublished |
Source-supported
| Observation and evidence | Value |
|---|---|
Auxiliary High Flow Column 1: T76. High-flow auxiliary configuration; availability is not implied for blank source cells. Gallon definition is unspecified. Published: 30.3 gpm / 114.7 l/min Hydraulic System · Auxiliary High Flow · US and Metric; Column 1: T76 | 114.7 L/minPublished |
Source-supported
| Observation and evidence | Value |
|---|---|
System Relief @ Quick Couplers Column 1: T76. Relief pressure at quick couplers; published rounding is retained. Published: 3450 psi / 23786.9 kPa Hydraulic System · System Relief @ Quick Couplers · US and Metric; Column 1: T76 | 23,786.9 kPaPublished |
Configuration and source notes
- Original T76 only; the T76-2 is a separate generation.
- Metric-only suspension and tipping rows coexist with generic and solid-undercarriage rows. No single capacity or tipping load is selected.
- Source columns, left to right: Column 1: T76.
- Identical values are grouped only when the source row and both published unit strings agree; all contributing columns remain identified. Blank cells mean not stated, never zero.
- Specifications are for comparison and may include engineering calculations. Individual equipment varies; no verified serial range or complete model-year range is established.
Manufacturer sources
- Bobcat Company: T76 Compact Track Loader (Non-Current Model)
Edition / publication date not stated. · Inspected .
Inspected directly in a browser in US and Metric views. Source column identity and blank cells retained.
No complete model-year range or serial mapping is established.
