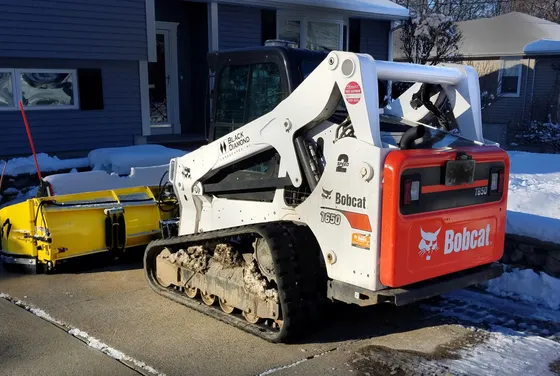

Bobcat T650 specifications
Compact track loader · Historical T650 archive variants
Documented applicability
- Documented market
- North America (English manufacturer page); country-specific and serial applicability not established.
- Model years
- Not established
- Serial range
- Not established
- Evidence
Key facts
Published unit pairs take precedence. Calculated equivalents are marked approximate; unspecified gallon and horsepower definitions stay as published.
Metric display selected.
- Operating weightUnresolved
Applicability unresolved. Published variants or rating rows differ; select the relevant source column and configuration. No single value is selected.
- 4,282 kgPublishedOperating Weight
- 4,075 kgPublishedOperating Weight
- Machine width
1,851 mmPublished
Column 1: T650 Compact Track Loader; Column 2: T650. Overall machine width; bucket width is a separate source row.
Details and evidence for machine width- Engine powerUnresolved
Applicability unresolved. Published variants or rating rows differ; select the relevant source column and configuration. No single value is selected.
- 55.4 kWPublishedHorsepower
- 55.2 kWPublishedHorsepower
- Rated operating capacityUnresolved
Applicability unresolved. Published variants or rating rows differ; select the relevant source column and configuration. No single value is selected. Not stated in the inspected views: ROC Solid Undercarriage — Column 1: T650 Compact Track Loader; Rated Operating Capacity 300 lb. Counterweight — Column 1: T650 Compact Track Loader; Rated Operating Capacity 200 lb. Counterweight — Column 1: T650 Compact Track Loader.
- 1,166 kgPublishedRated Operating Capacity
- 1,134 kgPublishedROC Solid Undercarriage
- 1,213 kgPublishedRated Operating Capacity 300 lb. Counterweight
- 1,179 kgPublishedRated Operating Capacity 200 lb. Counterweight
- Tipping loadUnresolved
Applicability unresolved. Published variants or rating rows differ; select the relevant source column and configuration. No single value is selected. Not stated in the inspected views: Tip Solid Undercarriage — Column 1: T650 Compact Track Loader.
- 3,331 kgPublishedTipping Load
- 3,252 kgPublishedTipping Load
- 3,240 kgPublishedTip Solid Undercarriage
- Standard hydraulic flow
87.1 L/minPublished
Column 1: T650 Compact Track Loader; Column 2: T650. Standard auxiliary flow. Gallon definition is unspecified; published unit pairs are retained.
Details and evidence for standard hydraulic flow
Detailed specifications
Each row keeps its manufacturer label and configuration. Separate rows do not define one combined machine configuration.
Applicability unresolved · Published variants or rating rows differ; select the relevant source column and configuration. No single value is selected.
| Observation and evidence | Value |
|---|---|
Operating Weight Column 1: T650 Compact Track Loader. Included equipment is not specified in this row. Published: 9440 lbs / 4282 kg Performance · Operating Weight · US and Metric; Column 1: T650 Compact Track Loader | 4,282 kgPublished |
Operating Weight Column 2: T650. Included equipment is not specified in this row. Published: 8990 lbs / 4075 kg Performance · Operating Weight · US and Metric; Column 2: T650 | 4,075 kgPublished |
Source-supported
| Observation and evidence | Value |
|---|---|
Overall Width Column 1: T650 Compact Track Loader; Column 2: T650. Overall machine width; bucket width is a separate source row. Published: 72.9 in / 1851 mm Dimensions · Overall Width · US and Metric; Column 1: T650 Compact Track Loader; Column 2: T650 | 1,851 mmPublished |
Source-supported
| Observation and evidence | Value |
|---|---|
Overall Height Column 1: T650 Compact Track Loader; Column 2: T650. Overall height; not raised-arm height. Published: 81.3 in / 2065 mm Dimensions · Overall Height · US and Metric; Column 1: T650 Compact Track Loader; Column 2: T650 | 2,065 mmPublished |
Source-supported
| Observation and evidence | Value |
|---|---|
Length with Standard Bucket Column 1: T650 Compact Track Loader; Column 2: T650. With standard bucket. Published: 136.8 in / 3474 mm | 3,474 mmPublished |
Source-supported
| Observation and evidence | Value |
|---|---|
Length without Attachment Column 1: T650 Compact Track Loader; Column 2: T650. Without attachment. Published: 108.4 in / 2753 mm | 2,753 mmPublished |
Applicability unresolved · Published variants or rating rows differ; select the relevant source column and configuration. No single value is selected.
| Observation and evidence | Value |
|---|---|
Horsepower Column 1: T650 Compact Track Loader. Gross/net basis and horsepower definition are not stated; published values are retained. Published: 74.3 hp / 55.4 kw T650 Key Specifications · Horsepower · US and Metric; Column 1: T650 Compact Track Loader | 55.4 kWPublished |
Horsepower Column 2: T650. Gross/net basis and horsepower definition are not stated; published values are retained. Published: 74 hp / 55.2 kw T650 Key Specifications · Horsepower · US and Metric; Column 2: T650 | 55.2 kWPublished |
Applicability unresolved · Published variants or rating rows differ; select the relevant source column and configuration. No single value is selected. Not stated in the inspected views: ROC Solid Undercarriage — Column 1: T650 Compact Track Loader; Rated Operating Capacity 300 lb. Counterweight — Column 1: T650 Compact Track Loader; Rated Operating Capacity 200 lb. Counterweight — Column 1: T650 Compact Track Loader.
| Observation and evidence | Value |
|---|---|
Rated Operating Capacity Column 1: T650 Compact Track Loader; Column 2: T650. Rating percentage and the relationship between generic, undercarriage and counterweight rows are not established by this table. Published: 2570 lbs / 1166 kg | 1,166 kgPublished |
ROC Solid Undercarriage Column 2: T650. Rating percentage and the relationship between generic, undercarriage and counterweight rows are not established by this table. Published: 2500 lbs / 1134 kg Performance · ROC Solid Undercarriage · US and Metric; Column 2: T650 | 1,134 kgPublished |
Rated Operating Capacity 300 lb. Counterweight Column 2: T650. Rating percentage and the relationship between generic, undercarriage and counterweight rows are not established by this table. Published: 2675 lbs / 1213 kg Performance · Rated Operating Capacity 300 lb. Counterweight · US and Metric; Column 2: T650 | 1,213 kgPublished |
Rated Operating Capacity 200 lb. Counterweight Column 2: T650. Rating percentage and the relationship between generic, undercarriage and counterweight rows are not established by this table. Published: 2600 lbs / 1179 kg Performance · Rated Operating Capacity 200 lb. Counterweight · US and Metric; Column 2: T650 | 1,179 kgPublished |
Applicability unresolved · Published variants or rating rows differ; select the relevant source column and configuration. No single value is selected. Not stated in the inspected views: Tip Solid Undercarriage — Column 1: T650 Compact Track Loader.
| Observation and evidence | Value |
|---|---|
Tipping Load Column 1: T650 Compact Track Loader. Undercarriage applies only where named in the row; generic and undercarriage rows are not assumed interchangeable. Published: 7343 lbs / 3331 kg Performance · Tipping Load · US and Metric; Column 1: T650 Compact Track Loader | 3,331 kgPublished |
Tipping Load Column 2: T650. Undercarriage applies only where named in the row; generic and undercarriage rows are not assumed interchangeable. Published: 7170 lbs / 3252 kg | 3,252 kgPublished |
Tip Solid Undercarriage Column 2: T650. Undercarriage applies only where named in the row; generic and undercarriage rows are not assumed interchangeable. This row appears only in Metric view. Published: 3240 kg Performance · Tip Solid Undercarriage · Metric; Column 2: T650 | 3,240 kgPublished |
Source-supported
| Observation and evidence | Value |
|---|---|
Auxiliary Std Flow Column 1: T650 Compact Track Loader; Column 2: T650. Standard auxiliary flow. Gallon definition is unspecified; published unit pairs are retained. Published: 23 gpm / 87.1 l/min | 87.1 L/minPublished |
Source-supported
| Observation and evidence | Value |
|---|---|
Auxiliary High Flow Column 1: T650 Compact Track Loader; Column 2: T650. High-flow auxiliary configuration; availability is not implied for blank source cells. Gallon definition is unspecified. Published: 30.5 gpm / 115.5 l/min | 115.5 L/minPublished |
Applicability unresolved · Published variants or rating rows differ; select the relevant source column and configuration. No single value is selected.
| Observation and evidence | Value |
|---|---|
System Relief @ Quick Couplers Column 1: T650 Compact Track Loader. Relief pressure at quick couplers; published rounding is retained. Published: 3500 psi / 241.5 bar | 241.5 barPublished |
System Relief @ Quick Couplers Column 2: T650. Relief pressure at quick couplers; published rounding is retained. Published: 3450 psi / 23789.9 kPa Hydraulic System · System Relief @ Quick Couplers · US and Metric; Column 2: T650 | 23,789.9 kPaPublished |
Configuration and source notes
- Historical archive columns are retained. The separately marketed T650 Classic is outside this record.
- Metric view includes Tip Solid Undercarriage; counterweight capacities remain separate.
- Source columns, left to right: Column 1: T650 Compact Track Loader; Column 2: T650.
- Identical values are grouped only when the source row and both published unit strings agree; all contributing columns remain identified. Blank cells mean not stated, never zero.
- Specifications are for comparison and may include engineering calculations. Individual equipment varies; no verified serial range or complete model-year range is established.
Manufacturer sources
- Bobcat Company: T650 Compact Track Loader (Non-Current Model)
Edition / publication date not stated. · Inspected .
Inspected directly in a browser in US and Metric views. Source column identity and blank cells retained.
No complete model-year range or serial mapping is established.
Record reviewed by Codex (AI-assisted review; no independent human review). Transcription and second comparison of every in-scope value and source column against browser-captured manufacturer tables in US and Metric views; applicability limitations retained.
