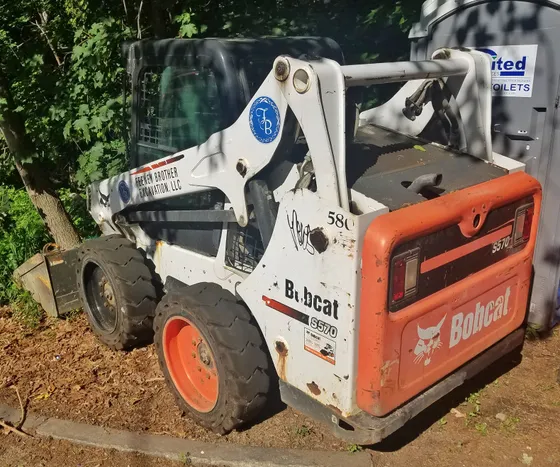

Bobcat S570 specifications
Skid-steer loader · Historical S570 archive variants
Documented applicability
- Documented market
- North America (English manufacturer page); country-specific and serial applicability not established.
- Model years
- Not established
- Serial range
- Not established
- Evidence
Key facts
Published unit pairs take precedence. Calculated equivalents are marked approximate; unspecified gallon and horsepower definitions stay as published.
Metric display selected.
- Operating weight
2,900 kgPublished
Column 1: S570 IT4. Included equipment is not specified in this row.
Details and evidence for operating weight- Machine width
1,643 mmPublished
Column 1: S570 IT4. Overall machine width; bucket width is a separate source row.
Details and evidence for machine width- Engine power
45.5 kWPublished
Column 1: S570 IT4. Gross/net basis and horsepower definition are not stated; published values are retained.
Details and evidence for engine power- Rated operating capacity
885 kgPublished
Column 1: S570 IT4. Rating percentage and the relationship between generic, undercarriage and counterweight rows are not established by this table.
Details and evidence for rated operating capacity- Tipping load
1,769 kgPublished
Column 1: S570 IT4. Undercarriage applies only where named in the row; generic and undercarriage rows are not assumed interchangeable.
Details and evidence for tipping load- Standard hydraulic flow
64.7 L/minPublished
Column 1: S570 IT4. Standard auxiliary flow. Gallon definition is unspecified; published unit pairs are retained.
Details and evidence for standard hydraulic flow
Detailed specifications
Each row keeps its manufacturer label and configuration. Separate rows do not define one combined machine configuration.
Source-supported
| Observation and evidence | Value |
|---|---|
Operating Weight Column 1: S570 IT4. Included equipment is not specified in this row. Published: 6395 lbs / 2900 kg Performance · Operating Weight · US and Metric; Column 1: S570 IT4 | 2,900 kgPublished |
Source-supported
| Observation and evidence | Value |
|---|---|
Overall Width Column 1: S570 IT4. Overall machine width; bucket width is a separate source row. Published: 64.7 in / 1643 mm Dimensions · Overall Width · US and Metric; Column 1: S570 IT4 | 1,643 mmPublished |
Source-supported
| Observation and evidence | Value |
|---|---|
Overall Height Column 1: S570 IT4. Overall height; not raised-arm height. Published: 77.8 in / 1972 mm Dimensions · Overall Height · US and Metric; Column 1: S570 IT4 | 1,972 mmPublished |
Source-supported
| Observation and evidence | Value |
|---|---|
Length with Standard Bucket Column 1: S570 IT4. With standard bucket. Published: 133 in / 3378 mm Dimensions · Length with Standard Bucket · US and Metric; Column 1: S570 IT4 | 3,378 mmPublished |
Source-supported
| Observation and evidence | Value |
|---|---|
Length without Attachment Column 1: S570 IT4. Without attachment. Published: 104.6 in / 2657 mm Dimensions · Length without Attachment · US and Metric; Column 1: S570 IT4 | 2,657 mmPublished |
Source-supported
| Observation and evidence | Value |
|---|---|
Horsepower Column 1: S570 IT4. Gross/net basis and horsepower definition are not stated; published values are retained. Published: 61 hp / 45.5 kw S570 Key Specifications · Horsepower · US and Metric; Column 1: S570 IT4 | 45.5 kWPublished |
Source-supported
| Observation and evidence | Value |
|---|---|
Rated Operating Capacity Column 1: S570 IT4. Rating percentage and the relationship between generic, undercarriage and counterweight rows are not established by this table. Published: 1950 lbs / 885 kg Performance · Rated Operating Capacity · US and Metric; Column 1: S570 IT4 | 885 kgPublished |
Source-supported
| Observation and evidence | Value |
|---|---|
Tipping Load Column 1: S570 IT4. Undercarriage applies only where named in the row; generic and undercarriage rows are not assumed interchangeable. Published: 3900 lbs / 1769 kg Performance · Tipping Load · US and Metric; Column 1: S570 IT4 | 1,769 kgPublished |
Source-supported
| Observation and evidence | Value |
|---|---|
Auxiliary Std Flow Column 1: S570 IT4. Standard auxiliary flow. Gallon definition is unspecified; published unit pairs are retained. Published: 17.1 gpm / 64.7 l/min Hydraulic System · Auxiliary Std Flow · US and Metric; Column 1: S570 IT4 | 64.7 L/minPublished |
Source-supported
| Observation and evidence | Value |
|---|---|
Auxiliary High Flow Column 1: S570 IT4. High-flow or super-flow auxiliary configuration as named in the row; availability is not implied for blank source cells. Gallon definition is unspecified. Published: 26.7 gpm / 101.1 l/min Hydraulic System · Auxiliary High Flow · US and Metric; Column 1: S570 IT4 | 101.1 L/minPublished |
Source-supported
| Observation and evidence | Value |
|---|---|
System Relief @ Quick Couplers Column 1: S570 IT4. Pressure basis and hydraulic configuration follow the row label; published rounding is retained. Published: 3500 psi / 24200 kPa Hydraulic System · System Relief @ Quick Couplers · US and Metric; Column 1: S570 IT4 | 24,200 kPaPublished |
Configuration and source notes
- Only the S570 IT4 column is covered; applicability to other emissions variants is not established.
- Source columns, left to right: Column 1: S570 IT4.
- Identical values are grouped only when the source row and both published unit strings agree; all contributing columns remain identified. Blank cells mean not stated, never zero.
- Specifications are for comparison and may include engineering calculations. Individual equipment varies; no verified serial range or complete model-year range is established.
Manufacturer sources
- Bobcat Company: S570 Skid-Steer Loader (Non-Current Model)
Edition / publication date not stated. · Inspected .
Inspected directly in a browser in US and Metric views. Source column identity and blank cells retained.
No complete model-year range or serial mapping is established.
Record reviewed by Codex (AI-assisted review; no independent human review). Transcription and second comparison of every in-scope value and source column against browser-captured manufacturer tables in US and Metric views; applicability limitations retained.
