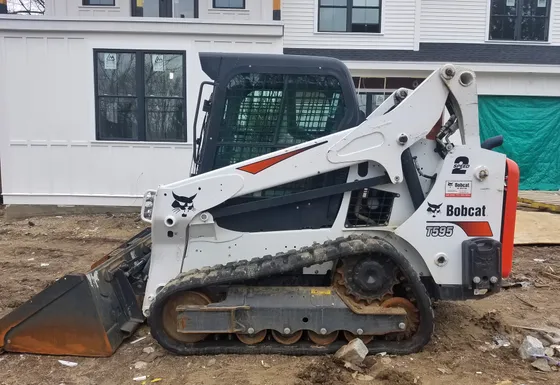

Bobcat T595 specifications
Compact track loader · Historical T595 archive variants
Documented applicability
- Documented market
- North America (English manufacturer page); country-specific and serial applicability not established.
- Model years
- Not established
- Serial range
- Not established
- Evidence
Key facts
Published unit pairs take precedence. Calculated equivalents are marked approximate; unspecified gallon and horsepower definitions stay as published.
Metric display selected.
- Operating weight
3,638 kgPublished
Column 1: T595 T4. Included equipment is not specified in this row.
Details and evidence for operating weight- Machine width
1,704 mmPublished
Column 1: T595 T4. Overall machine width; bucket width is a separate source row.
Details and evidence for machine width- Engine power
55 kWPublished
Column 1: T595 T4. Gross/net basis and horsepower definition are not stated; published values are retained.
Details and evidence for engine power- Rated operating capacity
998 kgPublished
Column 1: T595 T4. Rating percentage and the relationship between generic, undercarriage and counterweight rows are not established by this table.
Details and evidence for rated operating capacity- Tipping load
2,850 kgPublished
Column 1: T595 T4. Undercarriage applies only where named in the row; generic and undercarriage rows are not assumed interchangeable.
Details and evidence for tipping load- Standard hydraulic flow
64.7 L/minPublished
Column 1: T595 T4. Standard auxiliary flow. Gallon definition is unspecified; published unit pairs are retained.
Details and evidence for standard hydraulic flow
Detailed specifications
Each row keeps its manufacturer label and configuration. Separate rows do not define one combined machine configuration.
Source-supported
| Observation and evidence | Value |
|---|---|
Operating Weight Column 1: T595 T4. Included equipment is not specified in this row. Published: 8055 lbs / 3638 kg Performance · Operating Weight · US and Metric; Column 1: T595 T4 | 3,638 kgPublished |
Source-supported
| Observation and evidence | Value |
|---|---|
Overall Width Column 1: T595 T4. Overall machine width; bucket width is a separate source row. Published: 67.1 in / 1704 mm Dimensions · Overall Width · US and Metric; Column 1: T595 T4 | 1,704 mmPublished |
Source-supported
| Observation and evidence | Value |
|---|---|
Overall Height Column 1: T595 T4. Overall height; not raised-arm height. Published: 77.8 in / 1976 mm Dimensions · Overall Height · US and Metric; Column 1: T595 T4 | 1,976 mmPublished |
Source-supported
| Observation and evidence | Value |
|---|---|
Length with Standard Bucket Column 1: T595 T4. With standard bucket. Published: 133 in / 3378 mm Dimensions · Length with Standard Bucket · US and Metric; Column 1: T595 T4 | 3,378 mmPublished |
Source-supported
| Observation and evidence | Value |
|---|---|
Length without Attachment Column 1: T595 T4. Without attachment. Published: 104.6 in / 2657 mm Dimensions · Length without Attachment · US and Metric; Column 1: T595 T4 | 2,657 mmPublished |
Source-supported
| Observation and evidence | Value |
|---|---|
Horsepower Column 1: T595 T4. Gross/net basis and horsepower definition are not stated; published values are retained. Published: 74 hp / 55 kw T595 Key Specifications · Horsepower · US and Metric; Column 1: T595 T4 | 55 kWPublished |
Source-supported
| Observation and evidence | Value |
|---|---|
Rated Operating Capacity Column 1: T595 T4. Rating percentage and the relationship between generic, undercarriage and counterweight rows are not established by this table. Published: 2200 lbs / 998 kg Performance · Rated Operating Capacity · US and Metric; Column 1: T595 T4 | 998 kgPublished |
Source-supported
| Observation and evidence | Value |
|---|---|
Tipping Load Column 1: T595 T4. Undercarriage applies only where named in the row; generic and undercarriage rows are not assumed interchangeable. Published: 6285 lbs / 2850 kg Performance · Tipping Load · US and Metric; Column 1: T595 T4 | 2,850 kgPublished |
Source-supported
| Observation and evidence | Value |
|---|---|
Auxiliary Std Flow Column 1: T595 T4. Standard auxiliary flow. Gallon definition is unspecified; published unit pairs are retained. Published: 17.1 gpm / 64.7 l/min Hydraulic System · Auxiliary Std Flow · US and Metric; Column 1: T595 T4 | 64.7 L/minPublished |
Source-supported
| Observation and evidence | Value |
|---|---|
Auxiliary High Flow Column 1: T595 T4. High-flow or super-flow auxiliary configuration as named in the row; availability is not implied for blank source cells. Gallon definition is unspecified. Published: 26.7 gpm / 101.1 l/min Hydraulic System · Auxiliary High Flow · US and Metric; Column 1: T595 T4 | 101.1 L/minPublished |
Source-supported
| Observation and evidence | Value |
|---|---|
System Relief @ Quick Couplers Column 1: T595 T4. Pressure basis and hydraulic configuration follow the row label; published rounding is retained. Published: 3500 psi / 24200 kPa Hydraulic System · System Relief @ Quick Couplers · US and Metric; Column 1: T595 T4 | 24,200 kPaPublished |
Configuration and source notes
- Archive T595 T4 only; current models with the same name are not included.
- Published operating-weight pair 8055 lbs / 3638 kg is retained as printed; it is not an exact conversion.
- Source columns, left to right: Column 1: T595 T4.
- Identical values are grouped only when the source row and both published unit strings agree; all contributing columns remain identified. Blank cells mean not stated, never zero.
- Specifications are for comparison and may include engineering calculations. Individual equipment varies; no verified serial range or complete model-year range is established.
Manufacturer sources
- Bobcat Company: T595 Compact Track Loader (Non-Current Model)
Edition / publication date not stated. · Inspected .
Inspected directly in a browser in US and Metric views. Source column identity and blank cells retained.
No complete model-year range or serial mapping is established.
Record reviewed by Codex (AI-assisted review; no independent human review). Transcription and second comparison of every in-scope value and source column against browser-captured manufacturer tables in US and Metric views; applicability limitations retained.
