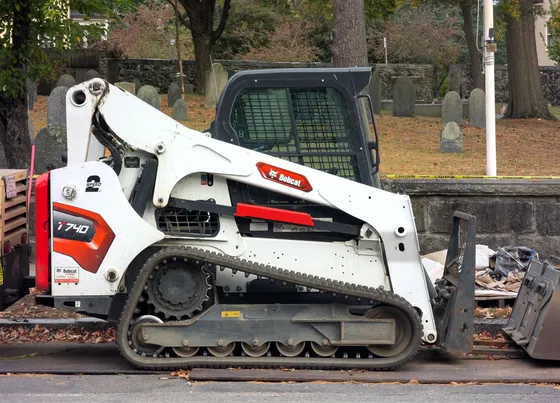

Bobcat T740 specifications
Compact track loader · Historical T740 archive variants
Documented applicability
- Documented market
- North America (English manufacturer page); country-specific and serial applicability not established.
- Model years
- Not established
- Serial range
- Not established
- Evidence
Key facts
Published unit pairs take precedence. Calculated equivalents are marked approximate; unspecified gallon and horsepower definitions stay as published.
Metric display selected.
- Operating weight
4,594 kgPublished
Column 1: T740; Column 2: T740. Included equipment is not specified in this row.
Details and evidence for operating weight- Machine width
1,981 mmPublished
Column 1: T740; Column 2: T740. Overall machine width; bucket width is a separate source row.
Details and evidence for machine width- Engine power
55.2 kWPublished
Column 1: T740; Column 2: T740. Gross/net basis and horsepower definition are not stated; published values are retained.
Details and evidence for engine power- Rated operating capacityConflicting
Conflicting evidence. Column 1 publishes 3310 lbs in US view and 1451 kg in Metric view, which do not agree. Column 2 and the counterweight rows remain separate; no single capacity is selected. Published variants or rating rows differ; select the relevant source column and configuration. No single value is selected. Not stated in the inspected views: ROC Solid Undercarriage — Column 1: T740; Rated Operating Capacity 400 lb. Counterweight — Column 1: T740; Rated Operating Capacity 300 lb. Counterweight — Column 1: T740; Rated Operating Capacity 200 lb. Counterweight — Column 1: T740.
- 1,501 kgApproximate conversionRated Operating Capacity
- 1,451 kgPublishedRated Operating Capacity
- 1,451 kgPublishedRated Operating Capacity
- 1,451 kgPublishedROC Solid Undercarriage
- 1,565 kgPublishedRated Operating Capacity 400 lb. Counterweight
- 1,531 kgPublishedRated Operating Capacity 300 lb. Counterweight
- 1,497 kgPublishedRated Operating Capacity 200 lb. Counterweight
- Tipping loadUnresolved
Applicability unresolved. Published variants or rating rows differ; select the relevant source column and configuration. No single value is selected. Not stated in the inspected views: Tip Solid Undercarriage — Column 1: T740.
- 4,147 kgPublishedTipping Load
- 4,147 kgPublishedTip Solid Undercarriage
- Standard hydraulic flowUnresolved
Applicability unresolved. Not stated in the inspected views: Auxiliary Std Flow — Column 2: T740.
- 87.1 L/minPublishedAuxiliary Std Flow
Detailed specifications
Each row keeps its manufacturer label and configuration. Separate rows do not define one combined machine configuration.
Source-supported
| Observation and evidence | Value |
|---|---|
Operating Weight Column 1: T740; Column 2: T740. Included equipment is not specified in this row. Published: 10127 lbs / 4594 kg Performance · Operating Weight · US and Metric; Column 1: T740; Column 2: T740 | 4,594 kgPublished |
Source-supported
| Observation and evidence | Value |
|---|---|
Overall Width Column 1: T740; Column 2: T740. Overall machine width; bucket width is a separate source row. Published: 78 in / 1981 mm Dimensions · Overall Width · US and Metric; Column 1: T740; Column 2: T740 | 1,981 mmPublished |
Source-supported
| Observation and evidence | Value |
|---|---|
Overall Height Column 1: T740; Column 2: T740. Overall height; not raised-arm height. Published: 81.3 in / 2065 mm Dimensions · Overall Height · US and Metric; Column 1: T740; Column 2: T740 | 2,065 mmPublished |
Source-supported
| Observation and evidence | Value |
|---|---|
Length with Standard Bucket Column 1: T740; Column 2: T740. With standard bucket. Published: 141.6 in / 3597 mm Dimensions · Length with Standard Bucket · US and Metric; Column 1: T740; Column 2: T740 | 3,597 mmPublished |
Source-supported
| Observation and evidence | Value |
|---|---|
Length without Attachment Column 1: T740; Column 2: T740. Without attachment. Published: 114.3 in / 2903 mm Dimensions · Length without Attachment · US and Metric; Column 1: T740; Column 2: T740 | 2,903 mmPublished |
Source-supported
| Observation and evidence | Value |
|---|---|
Horsepower Column 1: T740; Column 2: T740. Gross/net basis and horsepower definition are not stated; published values are retained. Published: 74 hp / 55.2 kw T740 Key Specifications · Horsepower · US and Metric; Column 1: T740; Column 2: T740 | 55.2 kWPublished |
Conflicting evidence · Column 1 publishes 3310 lbs in US view and 1451 kg in Metric view, which do not agree. Column 2 and the counterweight rows remain separate; no single capacity is selected. Published variants or rating rows differ; select the relevant source column and configuration. No single value is selected. Not stated in the inspected views: ROC Solid Undercarriage — Column 1: T740; Rated Operating Capacity 400 lb. Counterweight — Column 1: T740; Rated Operating Capacity 300 lb. Counterweight — Column 1: T740; Rated Operating Capacity 200 lb. Counterweight — Column 1: T740.
| Observation and evidence | Value |
|---|---|
Rated Operating Capacity Column 1: T740. Rating percentage and the relationship between generic, undercarriage and counterweight rows are not established by this table. US view; conflicts with the other unit view of this same source row. Published: 3310 lbs | 1,501 kgApproximate conversion |
Rated Operating Capacity Column 1: T740. Rating percentage and the relationship between generic, undercarriage and counterweight rows are not established by this table. Metric view; conflicts with the other unit view of this same source row. Published: 1451 kg Performance · Rated Operating Capacity · Metric; Column 1: T740 | 1,451 kgPublished |
Rated Operating Capacity Column 2: T740. Rating percentage and the relationship between generic, undercarriage and counterweight rows are not established by this table. Published: 3200 lbs / 1451 kg Performance · Rated Operating Capacity · US and Metric; Column 2: T740 | 1,451 kgPublished |
ROC Solid Undercarriage Column 2: T740. Rating percentage and the relationship between generic, undercarriage and counterweight rows are not established by this table. Published: 3200 lbs / 1451 kg Performance · ROC Solid Undercarriage · US and Metric; Column 2: T740 | 1,451 kgPublished |
Rated Operating Capacity 400 lb. Counterweight Column 2: T740. Rating percentage and the relationship between generic, undercarriage and counterweight rows are not established by this table. Published: 3450 lbs / 1565 kg Performance · Rated Operating Capacity 400 lb. Counterweight · US and Metric; Column 2: T740 | 1,565 kgPublished |
Rated Operating Capacity 300 lb. Counterweight Column 2: T740. Rating percentage and the relationship between generic, undercarriage and counterweight rows are not established by this table. Published: 3375 lbs / 1531 kg Performance · Rated Operating Capacity 300 lb. Counterweight · US and Metric; Column 2: T740 | 1,531 kgPublished |
Rated Operating Capacity 200 lb. Counterweight Column 2: T740. Rating percentage and the relationship between generic, undercarriage and counterweight rows are not established by this table. Published: 3300 lbs / 1497 kg Performance · Rated Operating Capacity 200 lb. Counterweight · US and Metric; Column 2: T740 | 1,497 kgPublished |
Applicability unresolved · Published variants or rating rows differ; select the relevant source column and configuration. No single value is selected. Not stated in the inspected views: Tip Solid Undercarriage — Column 1: T740.
| Observation and evidence | Value |
|---|---|
Tipping Load Column 1: T740; Column 2: T740. Undercarriage applies only where named in the row; generic and undercarriage rows are not assumed interchangeable. Published: 9143 lbs / 4147 kg Performance · Tipping Load · US and Metric; Column 1: T740; Column 2: T740 | 4,147 kgPublished |
Tip Solid Undercarriage Column 2: T740. Undercarriage applies only where named in the row; generic and undercarriage rows are not assumed interchangeable. This row appears only in Metric view. Published: 4147 kg Performance · Tip Solid Undercarriage · Metric; Column 2: T740 | 4,147 kgPublished |
Applicability unresolved · Not stated in the inspected views: Auxiliary Std Flow — Column 2: T740.
| Observation and evidence | Value |
|---|---|
Auxiliary Std Flow Column 1: T740. Standard auxiliary flow. Gallon definition is unspecified; published unit pairs are retained. Published: 23 gpm / 87.1 l/min Hydraulic System · Auxiliary Std Flow · US and Metric; Column 1: T740 | 87.1 L/minPublished |
Applicability unresolved · Published variants or rating rows differ; select the relevant source column and configuration. No single value is selected. Not stated in the inspected views: Auxiliary High Flow — Column 2: T740; Hydraulic High Flow (optional) — Column 1: T740.
| Observation and evidence | Value |
|---|---|
Auxiliary High Flow Column 1: T740. High-flow or super-flow auxiliary configuration as named in the row; availability is not implied for blank source cells. Gallon definition is unspecified. Published: 30.5 gpm / 115.5 l/min Hydraulic System · Auxiliary High Flow · US and Metric; Column 1: T740 | 115.5 L/minPublished |
Hydraulic High Flow (optional) Column 2: T740. High-flow or super-flow auxiliary configuration as named in the row; availability is not implied for blank source cells. Gallon definition is unspecified. Published: 30.5 gpm / 115.5 l/min Hydraulic System · Hydraulic High Flow (optional) · US and Metric; Column 2: T740 | 115.5 L/minPublished |
Applicability unresolved · Published variants or rating rows differ; select the relevant source column and configuration. No single value is selected.
| Observation and evidence | Value |
|---|---|
System Relief @ Quick Couplers Column 1: T740. Pressure basis and hydraulic configuration follow the row label; published rounding is retained. Published: 3500 psi / 24200 kPa Hydraulic System · System Relief @ Quick Couplers · US and Metric; Column 1: T740 | 24,200 kPaPublished |
System Relief @ Quick Couplers Column 2: T740. Pressure basis and hydraulic configuration follow the row label; published rounding is retained. Published: 3450 psi / 23786.9 kPa Hydraulic System · System Relief @ Quick Couplers · US and Metric; Column 2: T740 | 23,786.9 kPaPublished |
Configuration and source notes
- The non-current page is hosted at the ordinary T740 product URL. Two columns are both named T740; column order is not a year or serial mapping.
- Column 1 rated capacity is 3310 lbs in US view but 1451 kg in Metric view; these disagree. Column 2 has a distinct 3200 lbs / 1451 kg rating.
- Column 2 standard auxiliary flow is blank; its optional high-flow row is retained under its separate source label.
- Source columns, left to right: Column 1: T740; Column 2: T740.
- Identical values are grouped only when the source row and both published unit strings agree; all contributing columns remain identified. Blank cells mean not stated, never zero.
- Specifications are for comparison and may include engineering calculations. Individual equipment varies; no verified serial range or complete model-year range is established.
Manufacturer sources
- Bobcat Company: T740 Compact Track Loader (Non-Current Model)
Edition / publication date not stated. · Inspected .
Inspected directly in a browser in US and Metric views. Source column identity and blank cells retained.
No complete model-year range or serial mapping is established.
Record reviewed by Codex (AI-assisted review; no independent human review). Transcription and second comparison of every in-scope value and source column against browser-captured manufacturer tables in US and Metric views; applicability limitations retained.
